用于TO封装的铜制散热管座

用于大功率或可见光激光应用的散热功能。

关于

使用大功率激光器时,散热不良会影响产品性能。 的导热性很高,可以帮助散热。 铜的散热管座适用于微型投影仪、激光雷达、汽车大灯等。

产品特点

  • TO 管座上焊接了铜热沉片或内嵌铜块。
  • 铜的形状可定制。
  • 横向定位精度高于±0.03毫米(< < 2.0°)。
  • 散热效率高,确保气密性。

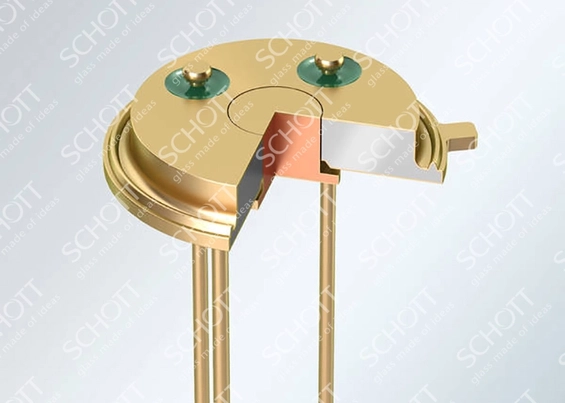

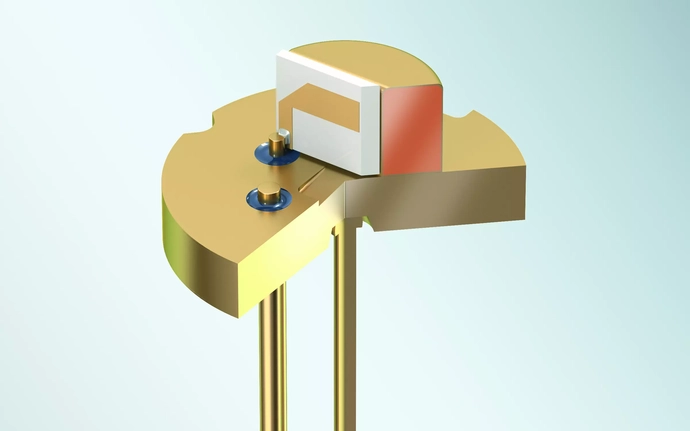

嵌铜管座-A型

Copper Heat Sink Header

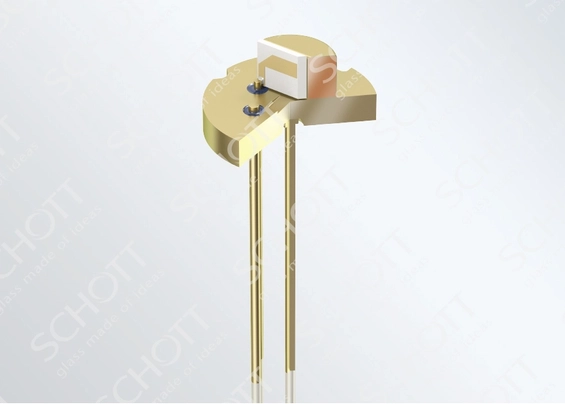

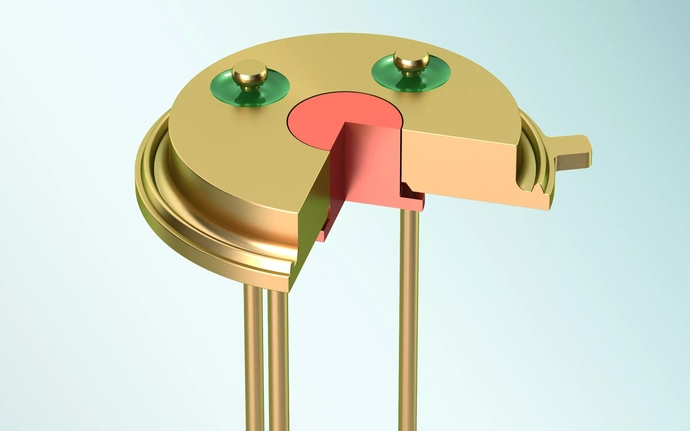

嵌铜管座-B型

Cu Slug Header

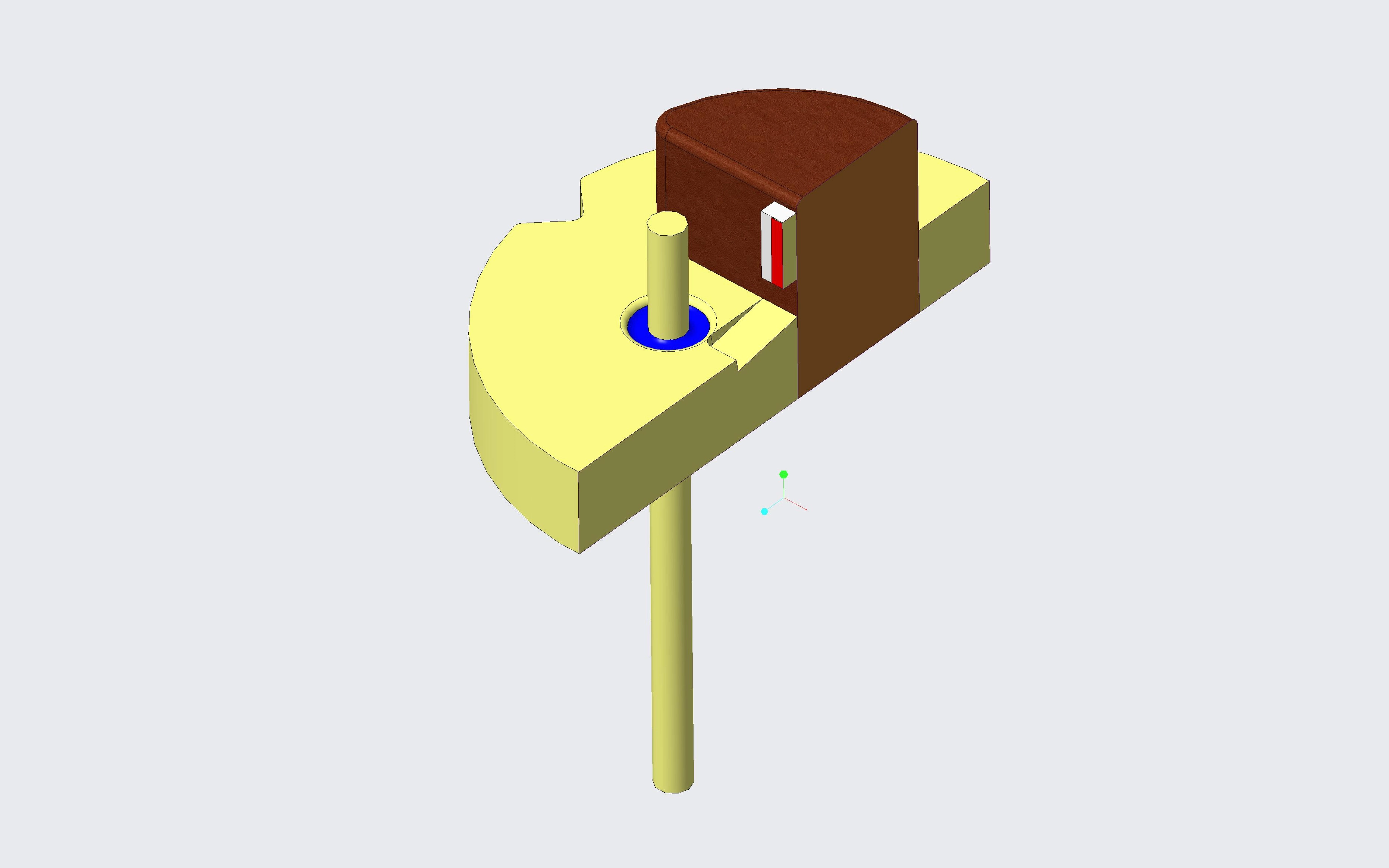

TO 9 管座

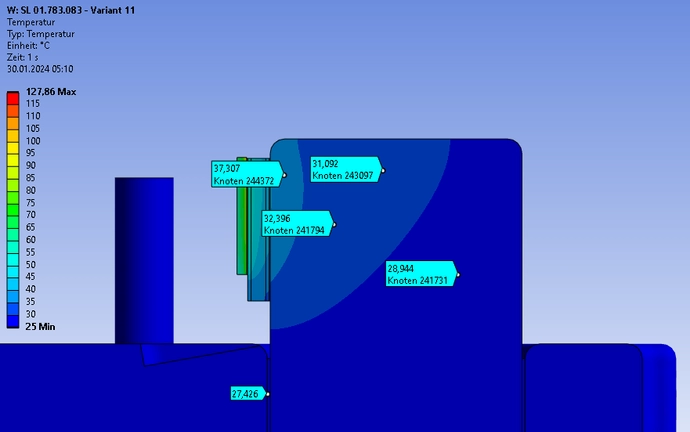

simulation result of TO9 copper header
simulation result of TO9 copper header

TO 9 品性能

  • TO 9置,热模拟显示热阻(Rth)平均值为8.14K/W包括激光器、陶瓷基板和管座)。

  • 片表面平整度精度高。

  • 用于封装高功率蓝光//绿/光激光器。

  • 用示例:如显示投影仪、汽车、激光标记等。

  • 品设计可定制。可根据客户要求,设计适合多个高功率激光器的盒式封装。

A嵌铜管座可将芯片温度降低21°C

环境温度TA25.0˚C,
CRS1010+CRS1010, 大温度为82.4˚C
CRS1010+热沉, 大温度为61.1˚C

环境温度TA70.0˚C,
CRS1010+CRS1010, 大温度为128.3˚C
CRS1010+热沉, 大温度为106.6˚C

Fully CRS1010 Header

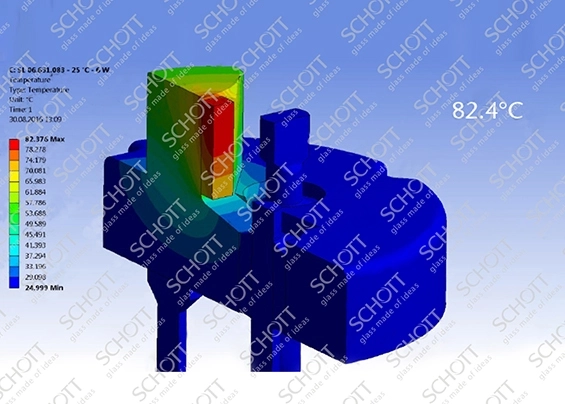

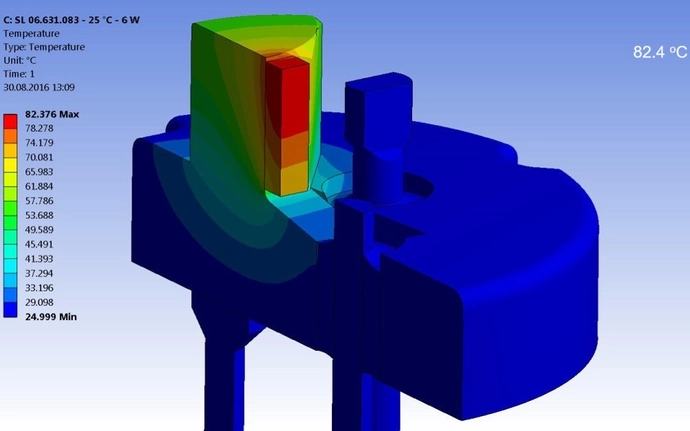

simulation result for Full CRS1010 header  at ambient temperature of 25 oC

实验环境: TA(环境温度)= 25.0°C,PH(热功率)= 6.0W

嵌铜管座-A型

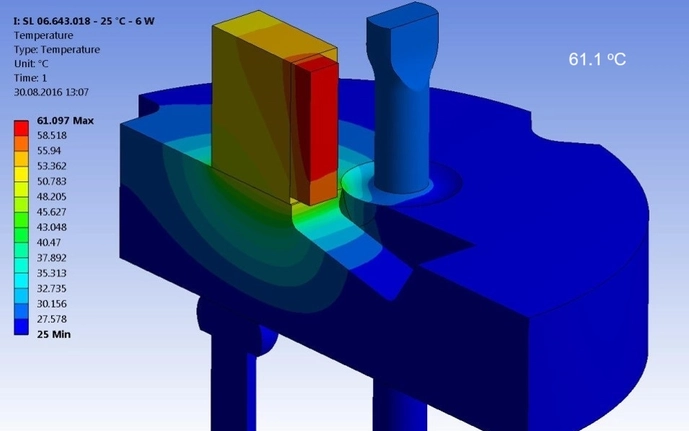

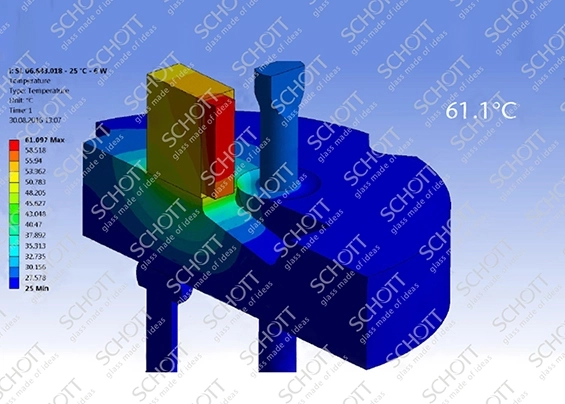

simulation result for Copper heatsink header at ambient temperature of 25 oC

实验环境: TA(环境温度)= 25.0°C,PH(热功率)= 6.0W

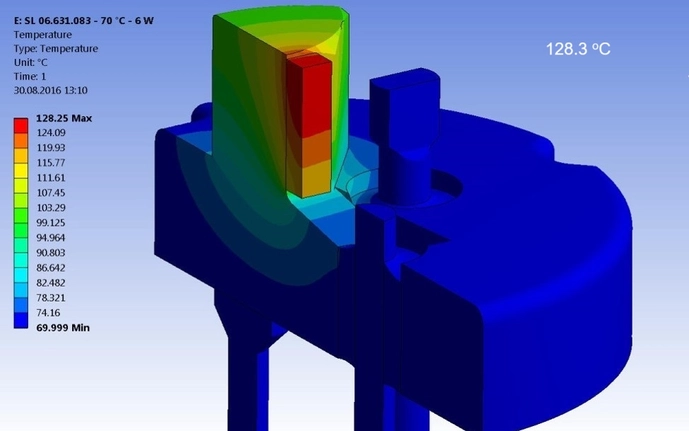

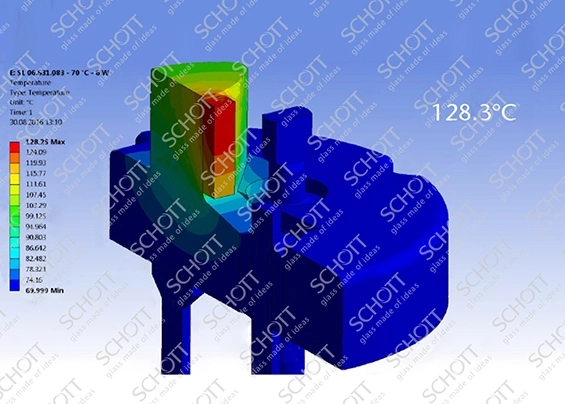

Fully CRS1010 Header

simulation result for Full CRS1010 header at ambient temperature of 70 oC

实验环境: TA(环境温度)= 70.0°C,PH(热功率)= 6.0W

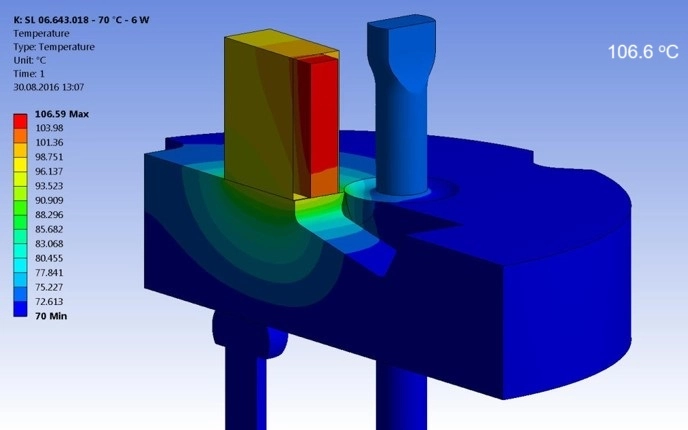

嵌铜管座-A型

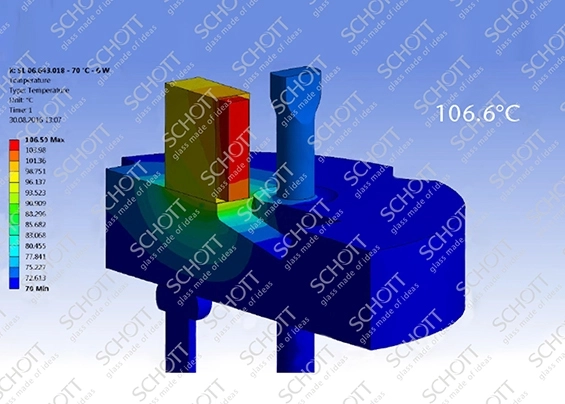

: simulation result for Copper heatsink header at ambient temperature of 70 oC

实验环境: TA(环境温度)= 70.0°C,PH(热功率)= 6.0W

Fully CRS1010 header

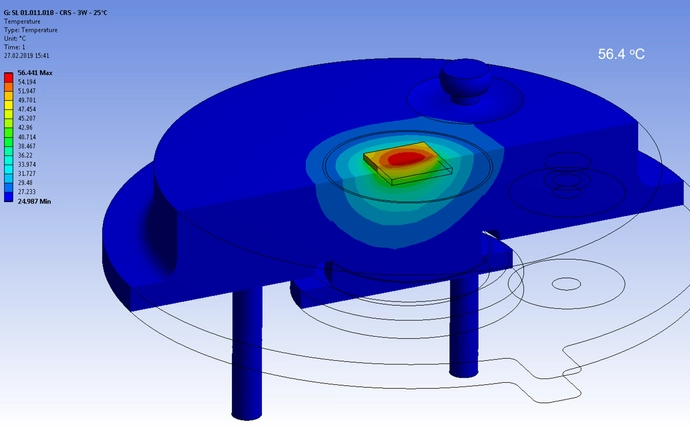

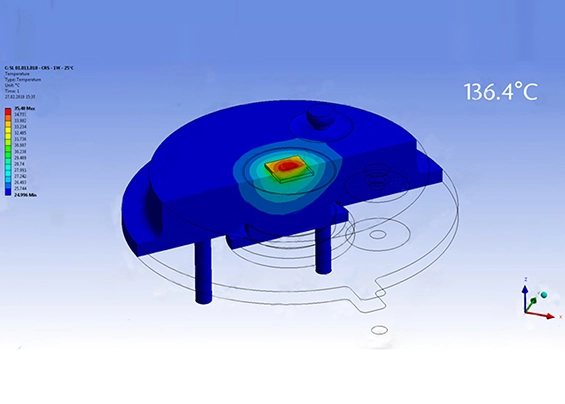

simulation result for Full CRS1010 header  at ambient temperature of 25 oC

实验环境: TA(环境温度)= 25.0°C,PH(热功率)= 3.0W

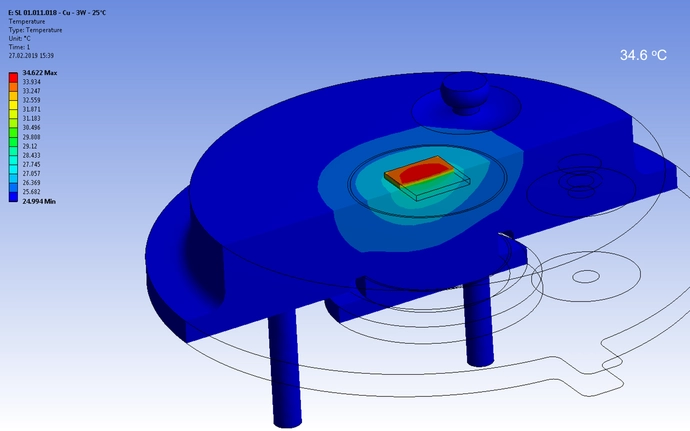

嵌铜管座-B型

copper header simulation-6-V2.png

实验环境: TA(环境温度)= 25.0°C,PH(热功率)= 3.0W



Fully CRS1010 header

simulation result for Full CRS1010 header  at ambient temperature of 105 oC

实验环境: TA(环境温度)= 105.0 °C,PH(热功率)= 3.0W

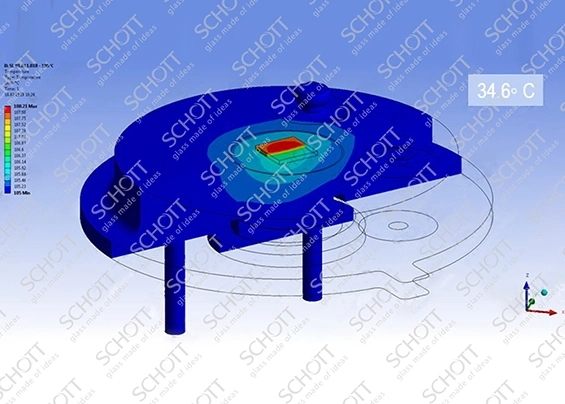

嵌铜管座-B型

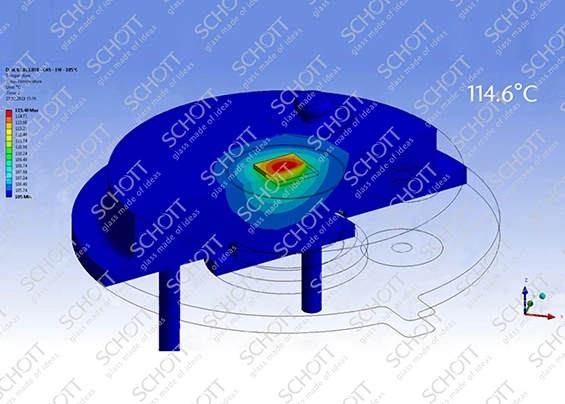

simulation result for Copper heatsink header at ambient temperature of 105 oC

实验环境: TA(环境温度)= 105.0 °C,PH(热功率)= 3.0W
