Transistor Outline (TO) Packages

TO packages consist of a TO header and a TO cap. While the TO header forms the basis of the encapsulated components and provides them with power, the cap enables smooth optical signal transmission. These two components form a hermetically sealed package that protects sensitive semiconductor components.

High performance, reliable lot-to-lot quality

Dependable hermeticity

SCHOTT TO Packages meet the highest reliability requirements thanks to our experience and technological leadership in glass-to-metal sealing.

Bondability, weldability, solderability

Consistent and uniform plating quality enables high process stability in your wire bonding and die attach processes. Excellent surface quality is achieved through strict control of material properties, enhancing the weldability of TO caps and soldering of the leads for a reliably hermetic seal.

High throughput and processability

TO headers and caps from SCHOTT combine high-performance designs with narrow tolerances and robust glass-to-metal seals. The mechanical stability of our products enables high throughput in your production thanks to excellent ease of use and processability.

Stable optical properties

SCHOTT TO caps and lenses are manufactured with very low variability of the optical properties thanks to tight control of our in-house melting processes. This is essential to achieving excellent coupling efficiency.

TO packages

Illustration of the process of manufacturing transistor outline (TO) packages

Quality requirements

Why is hermetic packaging so important for high-speed data communication?

In the context of microelectronics, the term 'hermeticity' refers to a vacuum-tight seal that prevents moisture and harmful gases from penetrating a sealed package. The moisture content allowed inside a hermetic cavity package usually must not exceed 5000 PPM water vapor over the lifetime of the device. Therefore, only packages made from glasses, metals, and ceramics are considered hermetic.

How does moisture affect the device?

Hydrogen and water vapor inside a package compromise the performance and reliability of the sensitive encapsulated components. This can lead to:

  • Chemical corrosion, causing damage to the metal interconnects
  • Electrical leakage across the pins
  • Electrical shorts due to dendritic growth of silver and gold
  • Change in transmission line impedance
  • Light scattering or wavelength drift in photonic components

Glass-to-metal sealed TO cans – the choice for reliable hermeticity

Glass-to-metal sealing has been the technology of choice for decades to manufacture vacuum-sealed hermetic packages. The key advantages of hermetic sealing with glass in comparison to non- or quasi-hermetic polymer packaging are:

  • No outgassing: Glass-to-metal sealed packages do not contain any organic substances and therefore do not outgas over time (proven with Residual Gas Analysis Tests).
  • Permeability close to zero: Glass-to-metal sealed packages experience virtually no gas permeation.

Advantages of SCHOTT TO packages

While glass-to-metal sealing is the most proven technology to produce hermetic packages, the art of permanently connecting glass with metal has only been mastered by a few. Moreover, high-performance TO packages with vacuum-tight hermetic seals can only be produced with headers and caps that meet the most strict durability requirements.

Built on a foundation of more than 50 years of experience in the TO field, SCHOTT’s focus is on providing the most stable in-spec quality that allows excellent processability in our customers’ production to enable high throughput and superior performance – especially in applications that require high-speed transmission or the reception of optical signals.

Perfectly-matching TO headers and caps, as well as extensive customization possibilities, enable our customers to develop high-performance optical assemblies for next-generation high-speed infrastructure.

Gas Tightness Glass-sealed TO packages provide reliable encapsulation, protecting sensitive electronics from moisture intrusion
High Speed Transmission
  • High speed SCHOTT TO header have pre-attached submounts with resistors
  • Short wire-bonds reduce inductance and increase speed
Excellent Thermal Management SCHOTT TO headers with thermoelectric cooler designs allow for controlled heat dissipation, which leads to regulated and stable laser wavelengths as well as higher power signal transmission
Precise Optical property Various high refractive index lens materials and coatings are available to enable high precision properties


Illustration of the range of SCHOTT Transistor Outline (TO) header and cap combinations

TO headers


  • TO headers provide a mechanical basis for the installation of electronic and optical components, such as semiconductors, laser diodes, and simple electronic circuits.
  • TO headers simultaneously deliver power to the encapsulated components with the aid of feedthrough pins.
  • Glass-sealed TO headers provide reliable and permanent protection for the encapsulated components against damage from the environment. Humidity in particular can cause semiconductor elements to corrode rapidly, leading to failure of the entire component.

TO header types

  • A variety of header outlines are available to accommodate differing amounts of available space, chip size, I/Os, and other variable requirements. SCHOTT can manufacture all standard TO header designs and matching caps with a multitude of customization options.
  • In general, there are three different types of TO headers which are distinguished by the production technology used in their manufacture:
  • Shelled TO headers consist of a metal foil that is shaped using thermoforming. The pins are fixed using glass.
  • Stamped TO headers come with raised heads (Stamp A) or flat heads (Stamp B).

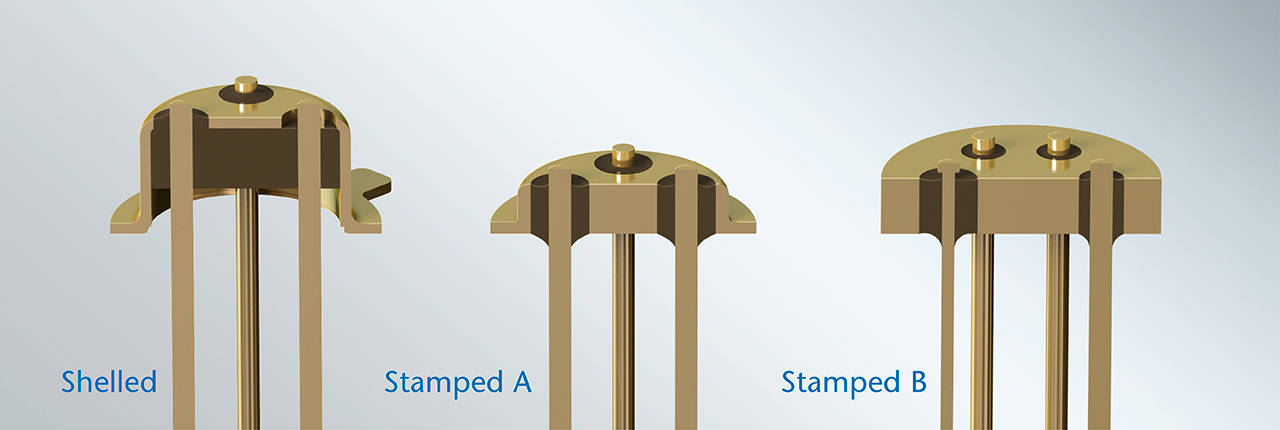

Illustration of the three types of transistor outline (TO) headers



The table below shows the established range of international standards and package combinations

Outline TO5 TO8 TO9  TO18 TO33 TO38  TO39  TO41 TO46  TO56  TO60
Profile  Shelled





















Diameter in


7.6  11.7  5 4.2   3.3  n/a 7.5  3.1  4.2  n/a  n/a


Diameter in


9.1  13.9   9 5.4  3.3  3.8 9.1   4.1 5.3  5.6  6.0


Pin Circle

Diameter in


 7.5 2.5   - - 1.43  5.08  1.65/1.80  2.54  2.0   -


Cap Outline

 TO5  TO8  TO9  TO18/TO52  TO33/TO38 TO38   TO5 TO56   TO18/TO52  TO56  TO60
Metal Compression glass seals

Cold rolled steel

(i.e. AISI 1010)

Matched glass seals

Kovar® (ASTM-F15) and

Alloy 52 (ASTM-F30)

  • Various plating materials (nickel, nickel-gold, nickel-silver)
  • Can be coated in additional metal layers when required.

TO caps


  • TO Caps reliably and permanently protect the optical components  in transmission and receiving functions.
  • TO Caps also enable the transmission of optical signals by acting as an optical interface. The optical properties of the windows or lenses installed into the TO caps must fulfill extremely high requirements.

TO Cap types

  • Ball lens cap

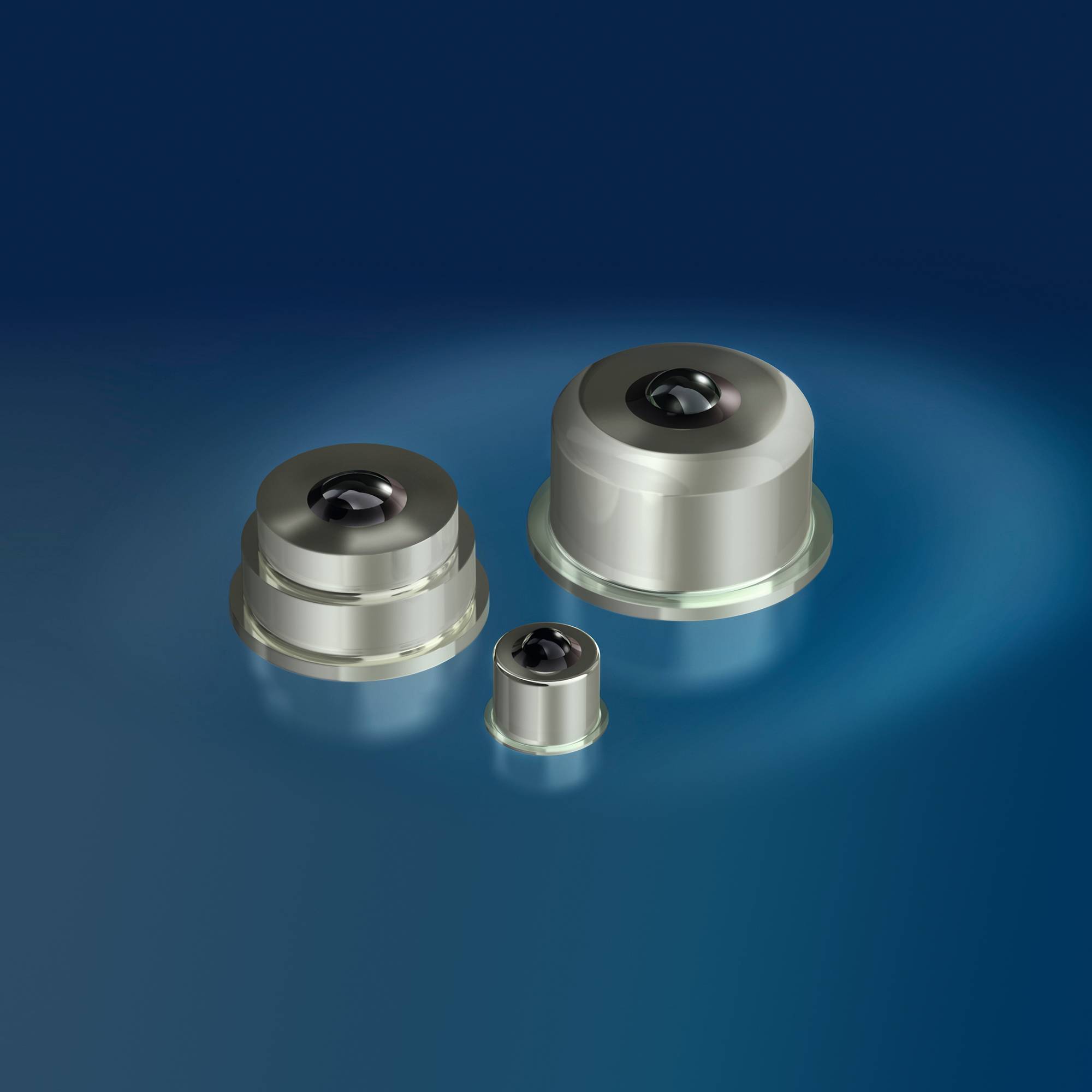

Three different types of transistor outline (TO) ball lens cap

These caps were specially developed for collimation and point-to-point imaging in laser diode to fiber coupling applications. SCHOTT can develop custom-made glass types to suit individual coupling efficiency specifications, such as refractive indices and ball lens diameters. Our ball lens caps are optimized for high stability of the focal point. Stable optical properties are achieved through the first-class quality of the ball lens roundness and close control of the ball lens position for welding purposes.


  • Mini lens cap

A transistor outline (TO) mini lens cap

SCHOTT mini lens caps provide a high level of safety and reliably retain their optical properties over the years. Mini lenses are particularly suitable for use with integrated sensors, for example for light intensity measurements (motion sensors, infrared temperature measurement, etc.), and can be used for encapsulating photodiodes for use as receivers in data communication.


  • Window caps

Cross sections of four transistor outline (TO) window caps

Ultra-high-precision window caps are manufactured to provide the highest levels of light transmission, further enhanced through AR coatings and the use of high-precision optical glass discs. These TO caps can be made in a variety of different geometric shapes.



Cap  Type  ID mm OD mm  FD mm  Compatible with TO header
TO5 L, W, FW, UFW  7.7  8.1  9.1 TO5, TO39
 TO8  11.8  12.3  14  TO8
  TO18 4.2  4.6  5.3  TO18, TO46
  TO38 2.5  2.7  3.4  TO38
  TO39 -  -
   TO41  TW   -
  TO46  -
   TO52  L, W, FW, TW, UFW  4.3  4.7  5.4  TO18, TO46
   TO56  W, TW, UFW  3.3  3.5  4.2  TO41, TO56
 Machined custom  -   -
 Pigtail 1.7  1.9  2.4 Pigtail
Pillpack  custom  -
 Rectangular custom   -

L = Lens, W = Window, BL = Ball Lens, FW = Filter Window, TW = Tilted Window, WW = Wedge Window, UFW = Ultra Flat Window


Metal Alloy 52, SF20T, Alloy 46 (Optional finishing; Ni/Ni + Au)
Ball lens Optical glasses. Refractive index; 1.5 to 2.0

Two main glass types as molded glass.

  • for visible and NIR light
  • for UV light

The usual glass type used for making window caps with solder glass technology is SCHOTT D263 glass

Glass Coating
  • AR (anti-reflective) coating
  • Beam splitter (interference or metal attenuation coating)
  • Filter coatings

Technology expertise

Our TO packages are manufactured using proven hermetic glass-to-metal sealing technology.

Learn more

SCHOTT as a supplier

R&D capability

  • RF Simulation

  • Mechanical and Thermal Simulation

  • Optical Simulation

We innovate for you

SCHOTT's launch of the first ever 10 Gbit/TO PLUS® header marked one of the most significant breakthroughs in the history of high-speed design. Since then, SCHOTT has proactively supported the requirement for continuously increasing data rates by developing the next generation of high-speed products before the market demands it.

Platform developments – made to be customized

Our R&D specialists utilize their experience and market knowledge to anticipate future customer challenges and develop solutions for these potential problems before they occur. All of SCHOTT's high-performance TO header platforms are made to be modified to suit customer specifications. Typical modifications include size alterations, pin number, pin positioning and special material requirements.

We innovate with you

You can count on complete and comprehensive support from SCHOTT in your product design and development process. By working closely together, we can make sure your desired functionality and performance specifications are met. SCHOTT can help make customer designs a reality thanks to a broad base of available tools.

Local application support

We strongly believe in consulting with our customers on the best possible solutions that perfectly fit their individual requirements. As a member of the SCHOTT Group, we benefit from a large range of in-house process know-how, including glass development, melting, and processing. Our Electronic Packaging business is built on the additional knowledge of metal processing, plating and finishing. SCHOTT's TO specialists aim to utilize our international set-up and technological expertise to provide customers with the best application support and consult with you with regards to product customization requirements.

Sales support worldwide

"If you have a headache, you can call us around the corner." This is the motto that applies to all of our sales experts around the world. Our dedicated Electronic Packaging competence centers in Asia, Europe, and the US enable us to provide our customers with fast, local, and competent customer service. The SCHOTT Group as a whole offers global customer support through its production locations and sales offices in 35 countries.

Our innovation track record - The basis for current and next generation high-speed designs.

Recognized as a world leader in glass science and processing, SCHOTT’s development of specialty glasses for the permanent sealing of glass and metal dates back to the 1930s. The first generation of today‘s high-speed TO PLUS® headers were introduced in 1964. With more than 50 years of research and applied knowledge in the TO field, SCHOTT continues to be a leading force in designing and manufacturing innovative high-speed designs that support next-generation data and telecom infrastructure.

  • 2018  50G: Breakthrough in Transistor Outline Technology. SCHOTT Introduces 50G TO PLUS® for unprecedented speed in datacom applications.

  • 2017  Overcoming all distances with high-speed TO solutions. High-performance TO headers and caps from SCHOTT can replace box packages in long-, middle-, and even short-range data transmission.

  • 2016 Replacing box packages with SCHOTT 10G DML TEC TOs. Realizing new high-speed optical component designs with high-performance TO PLUS® headers and caps. SCHOTT introduces miniature TO38 and TO33 header outlines for QSFP transceivers to support 4x10 Gbit/s.

  • 2015 Thinking outside the box: the new SCHOTT® TEC TO package. Ideal for 10Gbit/s cooled devices.

  • 2013 A quantum leap in high-speed designs: 28G TO PLUS® headers. 28G TO PLUS® headers are the first and only glass-to-metal sealed TO headers that enable data transmission rates of 28 GBit/s.

  • 2012 Improved SCHOTT TO56 Ball Lens Caps. With the introduction of further improved TO56 Ball Lens Caps, SCHOTT offers an optimized, high-performance product specially developed for the Fiber-To-The-Home (FTTH) market.

  • 2008 A quantum leap in high-speed designs. Development of the 14 Gbit/s TO PLUS® header for next-generation fiber channel.

  • 2006 TO headers with superior heat conductivity. SCHOTT launches its TO38, TO39, and TO56 headers with copper heatsink for high heat conductivity products.

  • 2002 First High-Speed TO Header for 10 Gbit/s. The 2002 introduction of the first high-speed TO PLUS® header for data rates of 10 Gbit/s marks a milestone in the history of SCHOTT‘s high-speed track record.

  • 2000 High-Precision Angled Window Caps for VCSEL With increasing requirements for speed and optical accuracy, SCHOTT introduces high-precision Angled Window Caps for VCSEL applications to provide defined back reflection for monitoring.

  • 1990 The triumph of fiber optic network deployment leads to TO headers and caps becoming standard equipment used to protect laser and photo diode chips. SCHOTT supports the need for increasing data rates by developing the next generation of high-speed products ahead of market demand.

  • 1980 TO Can packages become more sophisticated when their main application switches to optoelectronics. Using in-house competency in optical glasses, SCHOTT begins to offer TO window and lens caps that are now required to transmit optical signals.

  • 1964 Origins of high-volume transistor package production: SCHOTT EP is there from the beginning with the start of production of first hermetic TO headers based on glass-to-metal sealing.
