Pharmaceutical Type I Glass Tubing

With their low alkali content, chemical resistance, and optional UV protection, the various forms of FIOLAX® and BORO-8330™ glass provide a very low risk of drug-container interaction. Along with DENSOCAN® and DENSOPACK® transit protection, we offer all-round packaging solutions for the medical professional.

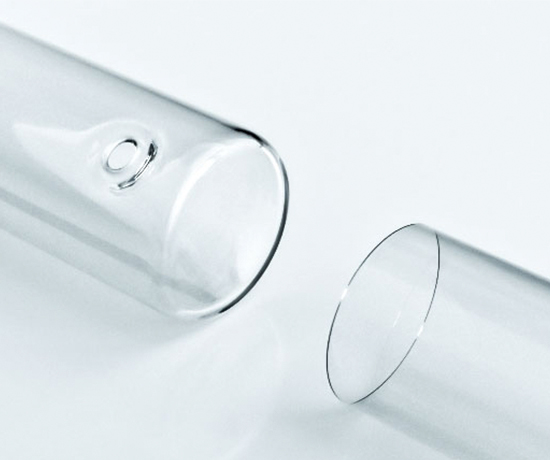

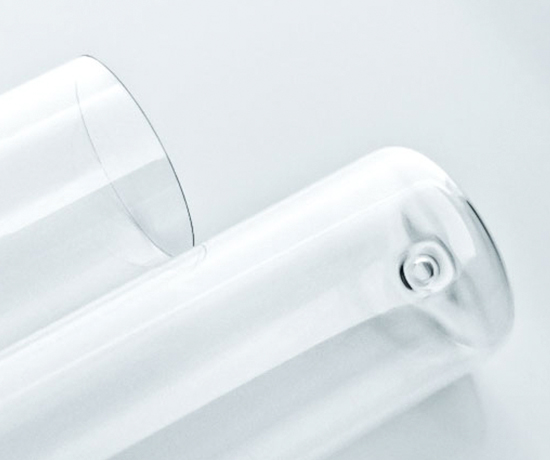

FIOLAX® clear
FIOLAX® clear

With its consistent composition, FIOLAX® clear is the premium global standard for pharmaceutical primary packaging. This unique glass has an outstanding track record for exceptional chemical and hydrolytic resistance, impermeability and neutrality.

CHARACTERISTICS

These properties protect the contents from premature aging and loss of effectiveness. The combination of excellent material quality and narrow tolerances enable smooth machine operation with superior product standards. FIOLAX® clear is a secure packaging medium for injectable solutions and biotech products, and complies with international regulations, including Ph.Eur., USP, JP and YBB.


YOUR ADVANTAGES

Customization is also possible, including even tighter tolerances or lower defect rates for the most demanding applications, as well as a variety of different tube end finishes and anti-scratch coating for safer transportation. We also offer FIOLAX® clear with controlled hydrolytic resistance (CHR) with certified quality of the tubing’s inner surface.

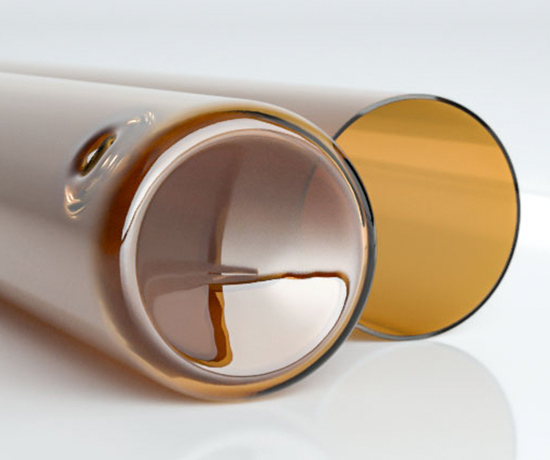

FIOLAX® amber
FIOLAX® amber

FIOLAX® amber has all the benefits of FIOLAX® clear, but also offers protection for light-sensitive drug formulations against the degrading effects of ultraviolet and short-wave visible light. With these unique properties, FIOLAX® amber fulfills very strict packaging requirements for the protection of injectable medicines.

CHARACTERISTICS

FIOLAX® amber has a proven track record for securing the long-term stability of light-sensitive drugs. Its ability to resist the harmful effects of UV light is certified on every FIOLAX® amber tubing pallet, and it fulfills the light-protection requirements of Ph. Eur. and USP, according to ISO standards. The stable composition of this Type I glass ensures a consistent color for the amber, which is created by the addition of iron and titanium oxide. As with FIOLAX® clear, FIOLAX® amber possesses outstanding material quality with narrow tolerances, resulting in smooth machine operation and superior product quality.



YOUR ADVANTAGES

Further options include even tighter tolerances or lower defect rates for the most demanding applications, as well as a variety of different tube end finishes and anti-scratch coating for safer transportation.

BORO-8330™
BORO-8330™

Used especially for vials and ampoules, this Type I high borosilicate glass (3.3 glass) features high chemical and hydrolytic resistance, as well as outstanding resistance to thermal shock, and is highly suited for injectable solutions.

CHARACTERISTICS

Like FIOLAX® clear and FIOLAX® amber, BORO-8330™ glass has a consistent composition. It’s also of free of alkaline earth metals and, for borosilicate glass, has minimum aluminum content. It’s also fully compliant with international regulatory standards, including Ph. Eur. and USP, and is especially popular in the United States. As with FIOLAX® glass, BORO-8330™ possesses outstanding material quality with narrow tolerances, which results in smooth machine operation and superior product quality.



YOUR ADVANTAGES

Further customization options include different tube end finishes with open or closed ends, and an anti-scratch coating, which protects the tubing during transport.
