Product variants of hermetic sensor packaging

Sensor applications demand a complex set of requirements for optimal performance. With unmatched experience and the broadest technology portfolio, SCHOTT stands as the top choice for meeting even the most challenging demands.

Hermetic sensor packaging

Hermetic sensor packaging

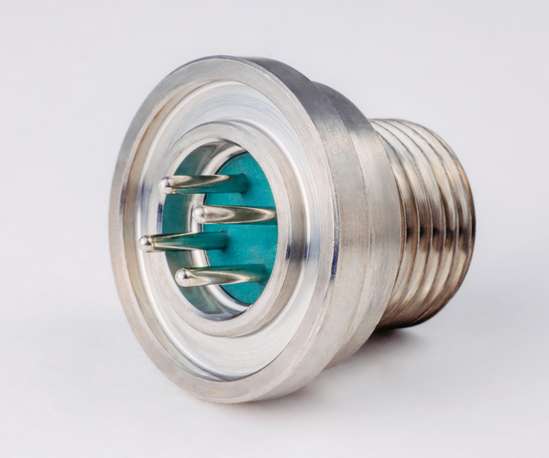

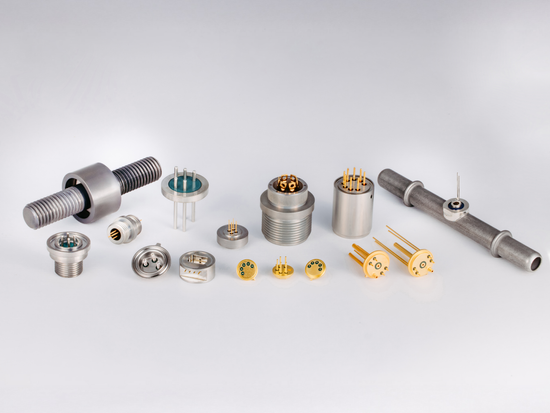

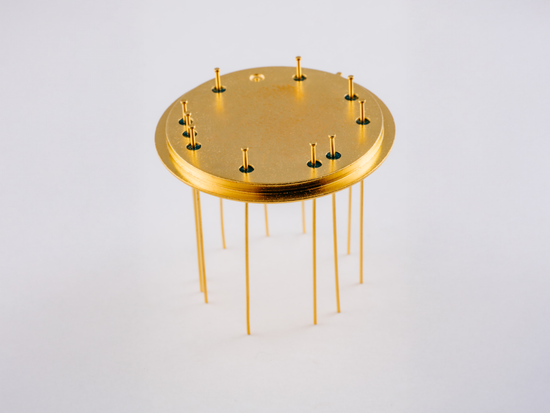

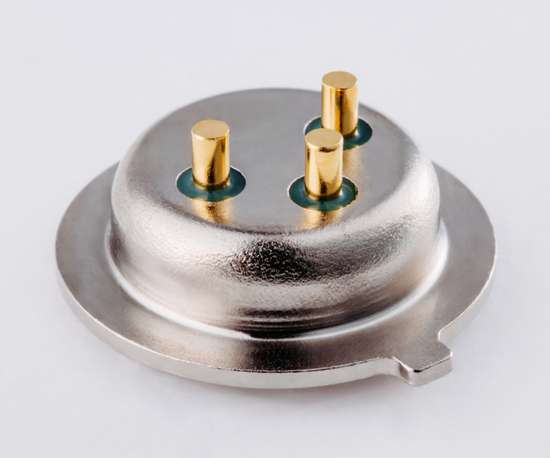

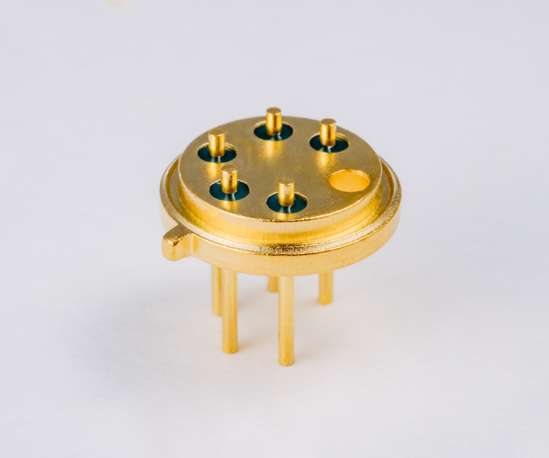

Feedthroughs and packaging components from SCHOTT are well-suited for the extreme operating environments often found in safety- or performance-critical automotive, aerospace, and industrial settings.
Hermetic sensor packaging
Hermetic sensor packaging
Hermetic sensor packaging
Hermetic sensor packaging
Hermetic sensor packaging
Hermetic sensor packaging
  • Hermetic sensor packaging
  • Hermetic sensor packaging
  • Hermetic sensor packaging
  • Hermetic sensor packaging
  • Hermetic sensor packaging
  • Hermetic sensor packaging

APPLICATIONS

  • Environmental and liquid sensors
    • Pressure sensors
    • Humidity sensors

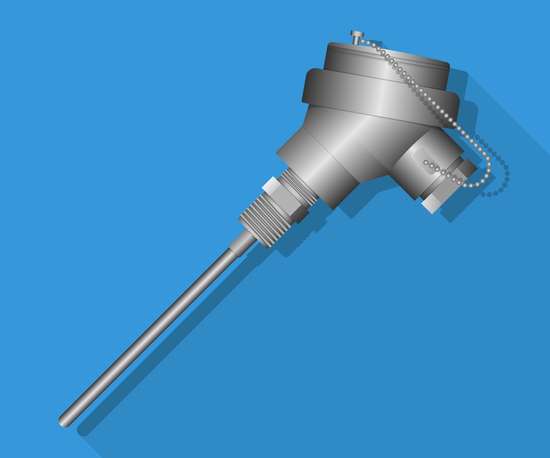

    • Temperature sensors
  • Flow and liquid sensors
  • Gas sensors
  • Inertial measurement sensors

YOUR ADVANTAGES

With cutting-edge technology and expertise, SCHOTT delivers sensor components built for the toughest environments:

  • Hermetic protection: Safeguards sensitive electronics, enabling reliable accurate measurements while also reducing failures and operational costs.
  • Optimal material selection: Combining technical know-how with co-development to meet specific needs, such as high resistance to pressure, moisture, and corrosion.
  • Nickel/gold plating: Ensures easy integration, wire bonding, and connectivity, streamlining future processes.
  • Glass-ceramic-to-metal sealing: Provides superior heat resistance, enabling high-temperature applications with simplified, less complex designs.
High-temperature sensor packaging

High-temperature sensor packaging

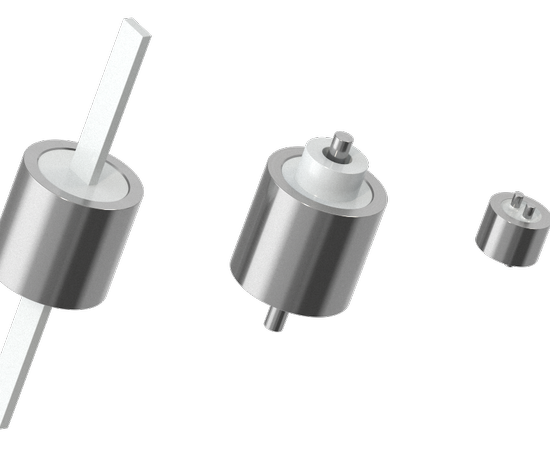

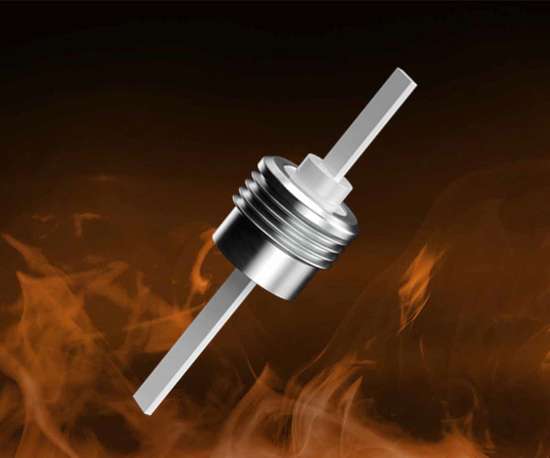

Our HEATAN® glass-ceramic-to-metal sealing technology combines the best qualities of two materials, offering a compelling alternative to conventional ceramic seals. Glass ceramics provide the same high-temperature stability as ceramics while enabling cost-efficient, space-saving designs — ideal for compact sensors. With temperature resistance from 300°C to over 1000°C, this sealing technology ensures exceptional gas-tightness and corrosion protection without the need for brazing, simplifying the sealing process and lowering costs.
High-temperature sensor packaging
High-temperature sensor packaging
High-temperature sensor packaging
High-temperature sensor packaging
High-temperature sensor packaging
  • High-temperature sensor packaging
  • High-temperature sensor packaging
  • High-temperature sensor packaging
  • High-temperature sensor packaging
  • High-temperature sensor packaging

APPLICATIONS

  • Aerospace and aviation - jet engines and control systems
  • Automotive - engine compartments and exhaust systems
  • Oil & gas - downhole drilling sensors
  • Power generation - turbines
  • Industrial process control - chemical processing, glass production, or metal smelting
  • Nuclear industry - nuclear reactors and containment systems

YOUR ADVANTAGES

  • Robust to ultrahigh temperatures
    Superior gas-tight insulation at operating temperatures >300°C and peak temperatures >1000°C.
  • Less complex and more cost-efficient
    HEATAN® sensor feedthroughs are single-component solutions, enabling simpler, more economical high-temperature sensors
Optical sensor packaging

Optical sensor packaging

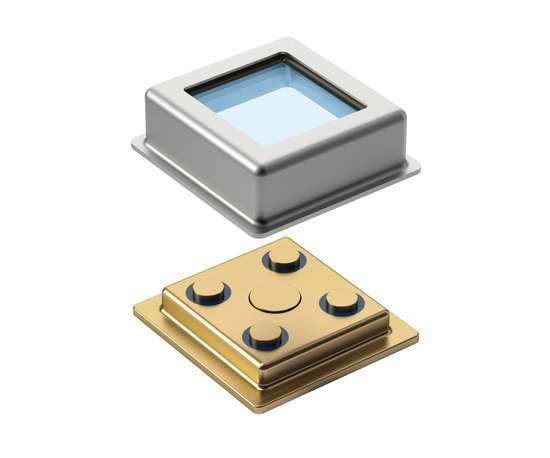

SCHOTT offers a range of hermetic packages designed to provide reliable protection and enable superior high-beam input and output for optical sensors. Our portfolio includes:
Optical sensor packaging
Optical sensor packaging
  • Optical sensor packaging
  • Optical sensor packaging
  • Custom through-hole or SMD packages
  • Standard and custom high-performance optical lenses or window caps

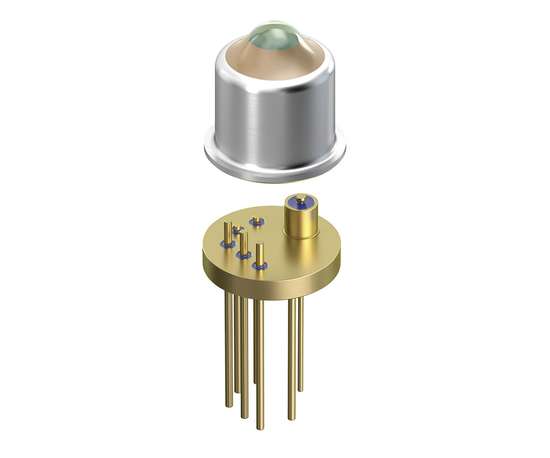

  • Standard transistor outline (TO) packages with matching caps/lenses (TO8, TO38, TO39, TO41, TO46, TO56)

APPLICATIONS

  • UV/VIS/IR sensor packaging
  • Laser/photodiode packaging for data communications, LiDAR
  • LED packaging

YOUR ADVANTAGES

  • Superior product reliability and precision based on more than 50 years of research and expertise in applied optoelectronic design and manufacturing.
  • First-class technical and application support from our dedicated optoelectronics specialists.
Integrated sensor packaging

Integrated sensor packaging ​

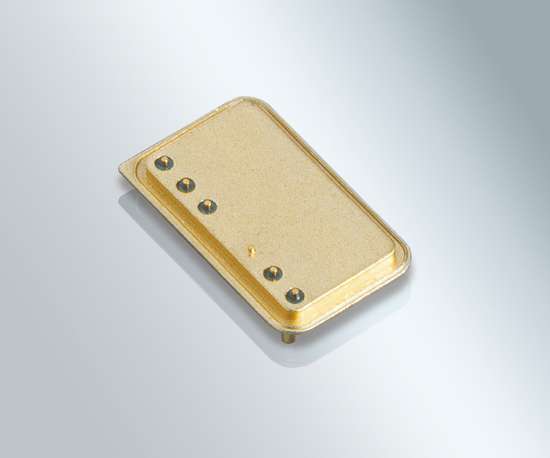

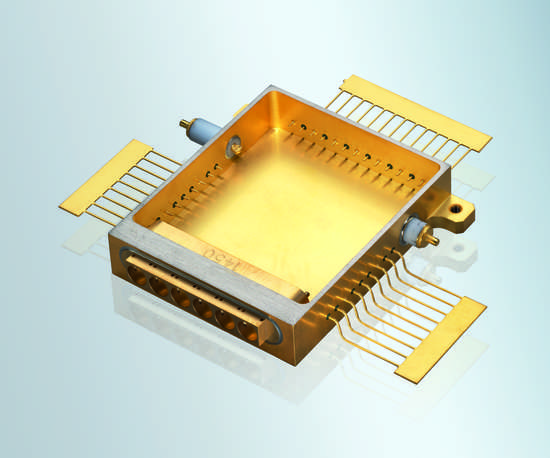

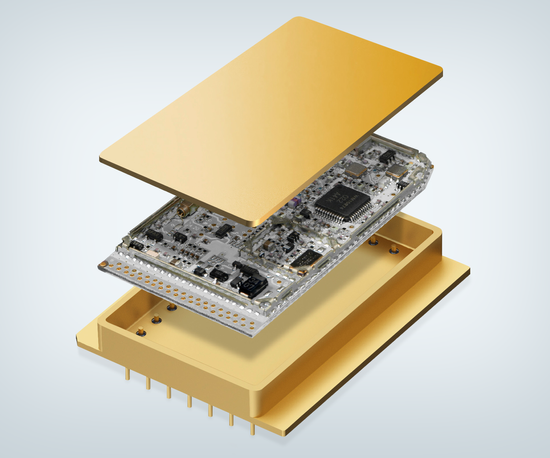

SCHOTT’s wide-ranging competencies enable significant design freedom for sensor manufacturers. For example, we can design high I/O count packages and integrate multiple electrical and optical interfaces using microelectronic packages. Complete electrical assemblies, such as sensitive measurement and control​electronics, can also be encapsulated.
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​
  • Integrated sensor packaging  ​

PORTFOLIO

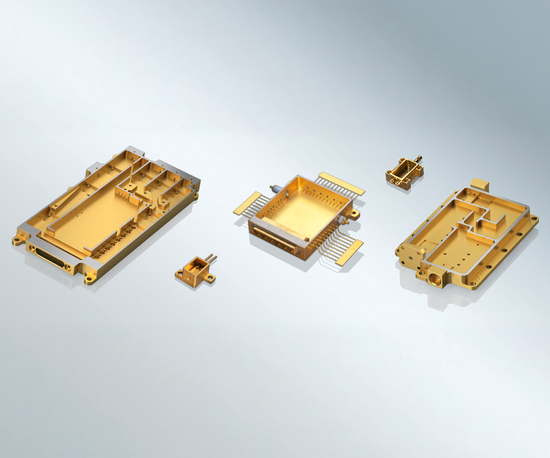

  • Multi-pin MCM or IC packages
  • Power electronics packages with high thermal conductivity

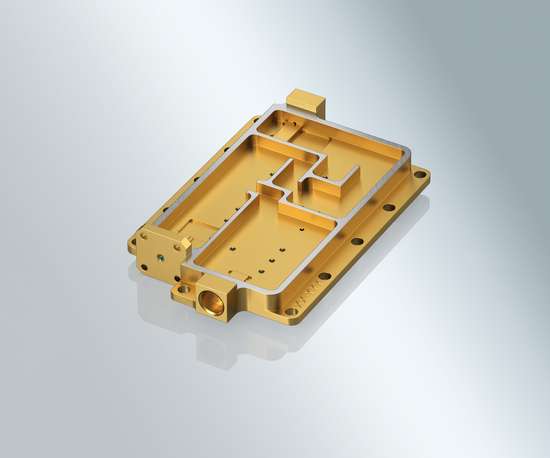

  • Microwave / RF packages
  • Amplifier packages

YOUR ADVANTAGES

  • First-class product quality: SCHOTT’s hermetic microelectronic sensor packages meet the highest performance and lifetime expectations, even in extreme pressure, vibration, and high-temperature conditions.
  • Unmatched technical design support and consultation: We cater to customer-specific interface needs, providing packaging optimized to fulfill electrical, mechanical, optical, and thermal requirements.
