KL Fiber Optic Light Sources

SCHOTT's collection of KL Fiber Optic Light Sources covers a range of requirements for cold light in microscopy. Used in combination with SCHOTT Light Guides, the four models range from the compact KL 300 LED for education and simple inspection to the KL 2500 LED for specialist applications.

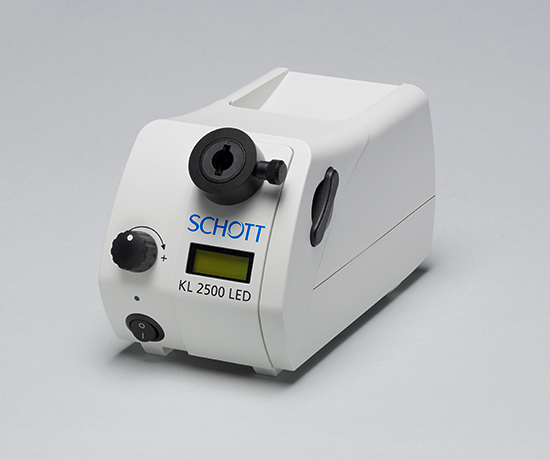

KL 2500 LED
KL 2500 LED

The KL 2500 LED is the performance leader in advanced cold light sources with an LED light engine. With a highest light output and wide range of special features, it’s ideal for customers with specialist requirements.

CHARACTERISTICS

  • Patented white light engine.
  • USB connectivity.
  • Electronic shutter function.
  • LCD display indicating brightness, operation mode or error code.
  • Intensity control with three sensitivities.
  • Two-position filter slider.

YOUR ADVANTAGES

  • Maximum light intensity of 1,100 lm.
  • Connection for foot switch.
  • PC-controllable via USB connection.
  • Continuous dimming from 0-100 %.
  • Extra-fine dimming option, down to 0.1 % steps.
  • Maintenance-free LED engine with 50,000 operating hours.

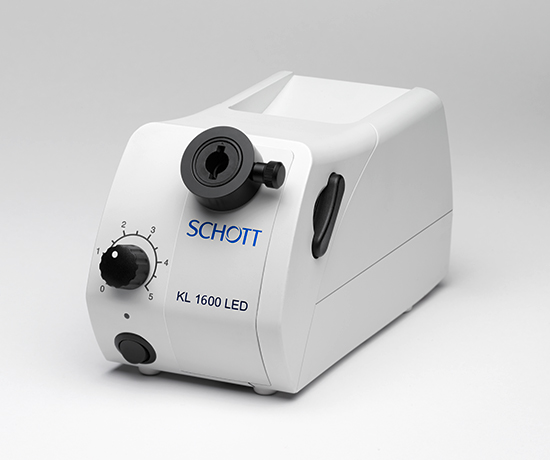

KL 1600 LED
KL 1600 LED

A standard LED cold light source for fiber optics, the KL 1600 LED is an ideal option for all objects and applications. Its multiple-chip white LED light engine offers an attractive alternative to conventional halogen cold light sources.

CHARACTERISTICS

  • Patented white light engine.
  • Easy to use fixture mechanism with clamping screw.
  • Two-position filter slider.


YOUR ADVANTAGES

  • Maximum light intensity of 680 lm.
  • Continuous dimming from 0-100 %.
  • Maintenance-free LED engine with 50,000 operating hours.

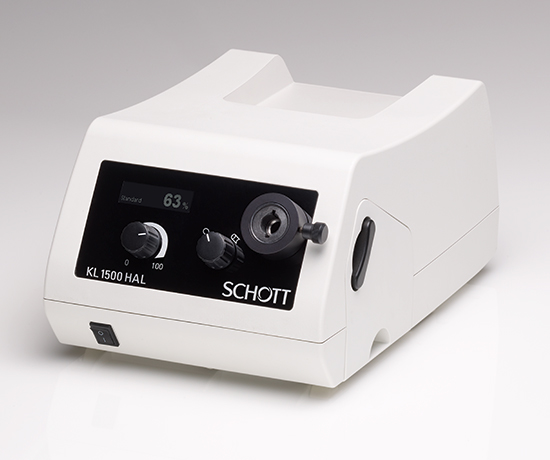

KL 1500 HAL
KL 1500 HAL

The KL 1500 HAL is a color-neutral professional halogen light source for fiber optic illumination. With the full 150-Watt halogen spectrum of CRI 100, it's designed to deliver optimum performance for color-critical measurements.

CHARACTERISTICS

  • High frequency illumination of 20 kHz.
  • Sensor interlock at the light guide socket.
  • LCD display to monitor color temperature and light intensity.
  • Swing-in optics for homogenization of light output.
  • Two-position filter slider.


YOUR ADVANTAGES

  • Maximum light intensity of 600 lm.
  • Color rendering index of 100 for excellent performance.
  • Continuous dimming from 0-100 %.

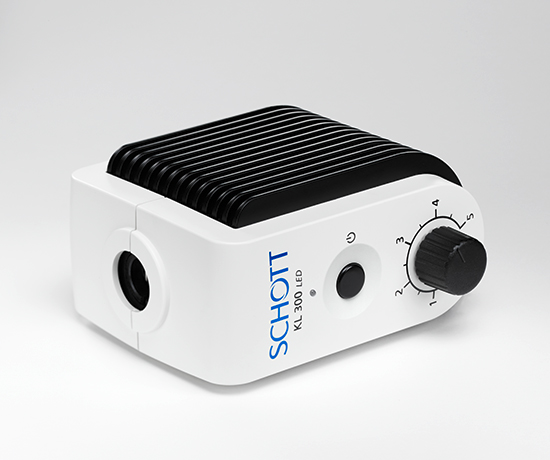

KL 300 LED
KL 300 LED

The KL 300 LED is a compact LED light source for fiber optics, offering simple operation combined with excellent value for money. These qualities make it ideally suited to routine inspections and education.

CHARACTERISTICS

  • Compact design.
  • Directly mountable to stand or column.
  • Wide range power supply with international clip plug system.


YOUR ADVANTAGES

  • Maximum light intensity of 80 lm.
  • Continuous dimming from 0-100 %.
  • Maintenance-free LED engine with 50,000 operating hours.
  • Fan-less convection cooling enables silent operation.
Accessories for KL Light Sources Accessories for KL Light Sources Accessories for KL Light Sources Accessories for KL Light Sources
  • Accessories for KL Light Sources
  • Accessories for KL Light Sources
  • Accessories for KL Light Sources
  • Accessories for KL Light Sources
Accessories for KL Light Sources

SCHOTT offers a variety of mechanical and optical accessories to increase the flexibility of its KL Light Sources. They include color filters, mounting brackets and electrical accessories such as a footswitch.

CHARACTERISTICS

  • Daylight and halogen filters available.
  • Color filters available in red, blue, green and yellow.
  • Mounting brackets for column Ø from 25-35 mm.
  • Power cords strictly adhere to international standards.
  • Footswitch available for remote operation.


YOUR ADVANTAGES

  • Compatible with a wide variety of OEM designs.
  • Color filters with high transmission and unaffected by light-entrance angle.
  • Additional contrast available with a range of filters.
  • Mechanically designed for easy handling.
