Hermetic lids and windows for optical MEMS

A hermetic lid is essential for reliable MEMS devices, as it creates a sealed, stable internal environment that protects delicate moving parts. It prevents immediate failure and long-term degradation by locking in a specific gas atmosphere and blocking external threats like moisture, dust, and contaminants. This environmental control is non-negotiable for MEMS used in critical automotive, medical, and industrial applications where precision and longevity are paramount.

• Anti-reflection (AR) coatings: minimize reflection losses and maximize light transmission through the window.
• Filter coatings: selectively transmit, reflect, or block specific wavelength bands.
• Durable & environmental protective coatings: protect the underlying window material from physical wear and chemical attack.
• Metallic & conductive coatings: provide electrical functionality or manage stray light.
• Beam-splitting coatings: partially reflective coatings (e.g., 50/50, 70/30) to divide an optical beam.
• Polarization-control coatings: include anti-reflection coatings for a specific polarization (AR-P) or polarizing beamsplitter coatings.
• Phase-retardation coatings: create waveplates integrated onto the window.

The choice of material for MEMS lids is critical, as it must protect the delicate microstructures from environmental hazards (moisture, particles), provide hermetic sealing, and often be transparent for optical devices. The selection depends on the device type, packaging method, and performance requirements.

The primary materials used include:

• Silicon: offers a perfect thermal expansion match for silicon MEMS, enabling reliable hermetic seals via wafer-level bonding.
• Glass: provides optical transparency and electrical insulation, often used for anodic bonding to silicon in optical and precision devices.
• Metals/alloys: deliver robust mechanical shielding and excellent thermal conductivity, ideal for high-reliability and EMI-sensitive applications.
• Ceramics: combine good thermal management with electrical insulation, commonly used in high-frequency and thermally demanding packages.
• Polymers/plastics: enable ultra-low-cost, non-hermetic encapsulation for high-volume consumer MEMS through molding processes.

In summary, the MEMS lid material is a core part of the device's performance, reliability, and cost structure. Silicon and glass dominate in wafer-level and precision applications, metals and ceramics rule in high-reliability sectors, and polymers are often used in the high-volume consumer market.

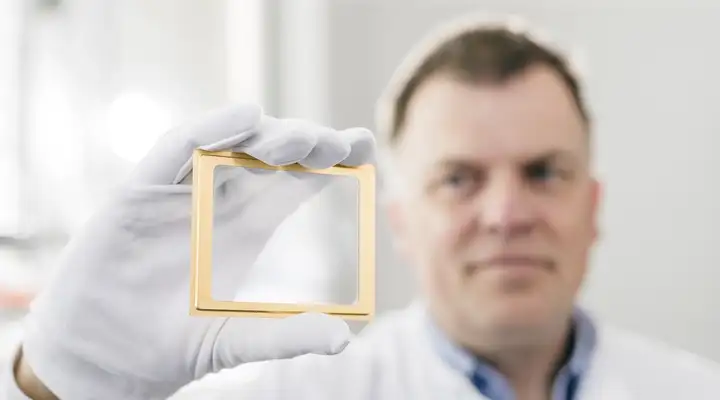

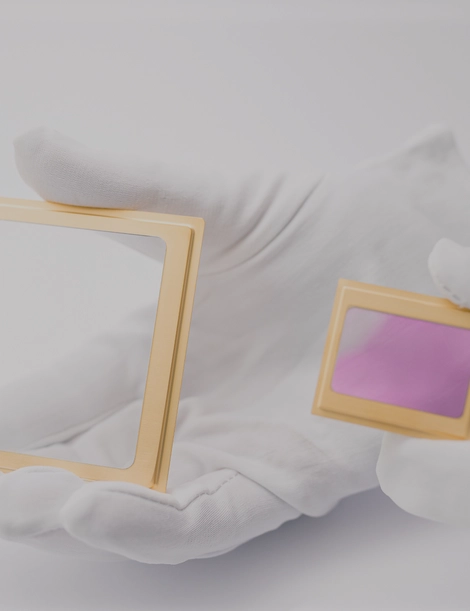

Larger MEMS windows offer significant benefits for integration, optical alignment, and performance in multi-chip and wide-field systems. However, they introduce severe challenges, including major mechanical, sealing, and thermal problems that increase cost and risk. Therefore, the fundamental design principle is to make the window only as large as strictly required for the optical function. The decision to use a larger window ultimately involves a trade-off, weighing the potential integration advantages against the substantial penalties in reliability and complexity.

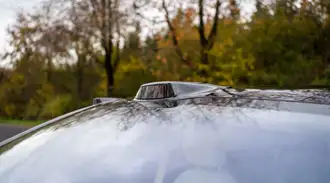

In LiDAR, MEMS lids act as rugged, optical-grade windshields. They hermetically seal the delicate scanning mirror, protecting it against outdoor hazards like moisture, dust, and vibration, while providing a distortion-free window for the laser beam. This ensures long-term reliability and maintains the critical beam quality needed for accurate distance sensing in automotive and industrial systems.

In optical circuit switching (OCS), the lid functions as a precision optical vault. It creates an ultra-stable, contaminant-free cavity for the MEMS mirror array, locking in an inert atmosphere to prevent performance drift. The lid's window is optimized for minimal signal loss at telecom wavelengths, ensuring the low insertion loss and decades-long reliability required for core data center and network switches.

The core difference: LiDAR lids prioritize environmental survivability (handling shock, temperature swings, and weather) while OCS lids prioritize ultra-stable precision (maintaining perfect optical alignment and signal purity for 20+ years). In both cases, the hermetic lid is not a passive cover but an active enabler, protecting the micro-optics to make these systems viable in the real world.
