AMIRAN®
AMIRAN® anti-reflective glass has a vast range of advantages over conventional float glass, offering negligible reflection, high light transmission and enviable durability. With a number of processing options, its qualities are extended further to produce one of our most versatile and popular glasses.
Specifications
AMIRAN® - stock sheets
| Type | AMIRAN® both-side anti-reflective-coating | AMIRAN® one-side anti-reflective coating |
|---|---|---|
| Max. net dimension (min.) small stock sheet | 3,180 mm x 1,770 mm | 3,180 mm x 1,770 mm |
| Max. net dimension (min.) large stock sheet | 3,770 mm x 1,770 mm | 3,770 mm x 1,770 mm |
| Thickness | 4, 6, 8, 10, 12 mm | 4, 5, 6, 8, 10 mm |
| Glass substrate | extra-clear low-iron float glass | extra-clear low-iron float glass |
| Luminous reflectance (ρvD65) | 1% | 1%* |
| Luminous transmittance (τvD65) | 98% | 97%* |
| Color rendering index (Ra) | 100% | 100%* |
| Thermal transmittance (Ug W/(m2·K) | 5.8 | 5.7* |
| Total solar energy transmittance (g) | 90% | 89%* |
| UV-transmittance (TUV) | 63% | 1%* |
*Thermo-optical data for laminated of 2 x one-side coated AMIRAN®
AMIRAN® - processed glass
| Type | AMIRAN® | AMIRAN® Thermally toughened safety glass, heat, strenghened glass | AMIRAN® LSG with PVB film |
|---|---|---|---|
| Max. net dimension | 3,770 mm x 1,770 mm | 3,770 mm x 1,770 mm | 3,770 mm x 1,770 mm |
| Thickness | 4, 6, 8, 10, 12 mm | dependant on assebly | dependant on assebly |
| Glass substrate | extra-clear low-iron float glass | extra-clear low-iron float glass | extra-clear low-iron float glass |
| Luminous reflectance (ρvD65) | 1% | 1% | 1% |
| Luminous transmittance (τvD65) | 98% | 97% | 97% |
| Color rendering index (Ra) | 100% | 100% | 100% |
| Thermal transmittance (Ug W/(m2·K) | 5.8 | 5.8 | 5.7 |
| Total solar energy transmittance (g) | 90% | 90% | 89% |
| UV-transmittance (TUV) | 63% | 63% | 1% |
| Type | AMIRAN® insulating glass | AMIRAN® insulating glass with sun protection | AMIRAN® insulating glass with heat protection |
|---|---|---|---|
| Further processing option | optionally as thermally toughened safety glass | optionally as thermally toughened safety glass | optionally as thermally toughened safety glass |
| Max. net dimension | 3,770 mm x 1,770 mm (dependant on the processor) |
3,770 mm x 1,770 mm (dependant on the processor) |
3,770 mm x 1,770 mm (dependant on the processor) |
| Thickness | dependant on assebly | dependant on assebly | dependant on assebly |
| Glass substrate | extra-clear low-iron float glass | extra-clear low-iron float glass | extra-clear low-iron float glass |
| Luminous reflectance (ρvD65) | 2% | 3% | 3% |
| Luminous transmittance (τvD65) | 96% | 85% | 85% |
| Color rendering index (Ra) | 99% | 98% | 98% |
| Thermal transmittance (Ug W/(m2·K) | 2.6 | 1.1 | 1.1 |
| Total solar energy transmittance (g) | 97% | 64% | 64% |
| UV-transmittance (TUV) | 49% | 14% | 14% |
Conventional glass in comparison
| Type | Thermally toughened safety glass | Thermally toughened safety glass |
|---|---|---|
| Max. net dimension | dependant on the manufacturer | dependant on the manufacturer |
| Thickness | dependant on the manufacturer | dependant on the manufacturer |
| Glass substrate | floatglass | extra-clear low-iron float glass |
| Luminous reflectance (ρvD65) | approx. 8% | approx. 8% |
| Luminous transmittance (τvD65) | 90% | 91% |
| Color rendering index (Ra) | 98% | 99% |
| Thermal transmittance (Ug W/(m2·K) | 5.8 | 5.8 |
| Total solar energy transmittance (g) | 86% | 91% |
| UV-transmittance (TUV) | 62% | 84% |
| Type | Insulating glass | Insulating glass |
|---|---|---|
| Max. net dimension | dependant on the manufacturer | dependant on the manufacturer |
| Thickness | dependant on the manufacturer | dependant on the manufacturer |
| Glass substrate | floatglass | extra-clear low-iron float glass |
| Luminous reflectance (ρvD65) | approx. 15% | approx. 15% |
| Luminous transmittance (τvD65) | 80% | 84% |
| Color rendering index (Ra) | 97% | 99% |
| Thermal transmittance (Ug W/(m2·K) | 2.6 | 2.6 |
| Total solar energy transmittance (g) | 75% | 83% |
| UV-transmittance (TUV) | 39% | 72% |
Anti-reflective properties
AMIRAN® anti-reflective glass is a float glass with optical interference properties coated on one or both sides to minimize surface reflections. A special immersion procedure is used to apply multiple metal oxide layers just nanometers thick. Reflections are reduced optically by up to 90% and the glass appears invisible. At a transmission of > 98%, viewers can then focus on what’s important.
Advantages of SCHOTT AMIRAN®
- Luminous reflectance of 0.9%
- Appears invisible
- Neutral in color
- High transmission
- Color rendering index of Ra = 100
Float vs. anti-reflective glass
Conventional float glass has dependable but limited optical properties. At just 91% transmission, a significant amount of light is lost. The smaller share of this (approximately 1%) is absorbed by the glass itself. The other 8% is reflected by the glass surface. This reflection is perceived as highly inconvenient, especially in applications which require clear viewing. Surface finishing can help here.
Disadvantages of float glass
- Luminous reflectance of 8%
- Undesirable reflections
- Lower transmission
- Colors appear drab
- Displays art with unsophisticated colors
 Float Glass |
 Anti-reflective glass |
Tests and cleaning
SCHOTT invests a great deal of time and effort to ensure that art lovers around the world have an uninterrupted view of their favorite pieces. The result is a high-tech, anti-reflective art glass of the highest quality with a surface that is extremely stable, easy to clean and highly resistant to abrasion.
Benefits of SCHOTT dip-coated glass
- Burned-in surface coating
- Highly resistant to abrasion
- Extremely stable
AMIRAN® is also mechanically robust and highly resistant to chemicals, delivering durable performance in every application. Key properties include:
- High mechanical durability proven by international standards
- Easy handling and processing
- Robust surface for daily cleaning cycles
Testing
AMIRAN® undergoes a series of rigorous tests, split into mechanical and chemical:
Mechanical tests
- The Tesa Test highlights the durability against the forces of adhesive tape being ripped from the coating.

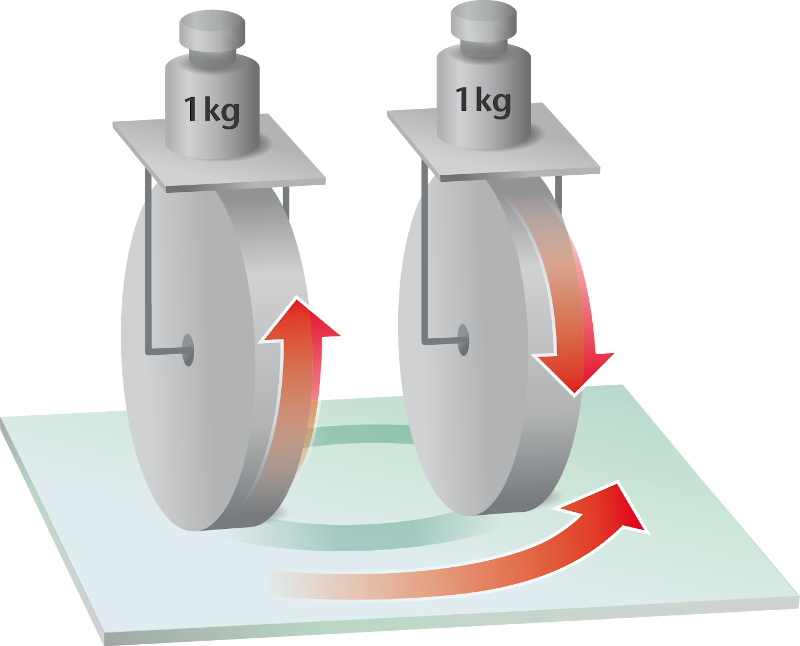

- Taber Abrasion Test, which tests the abrasion resistance of the coating.
- The Pencil Hardness Test checks scratch resistance. Here AMIRAN® achieved class 9H, a significantly higher score than other anti-reflective surfaces.

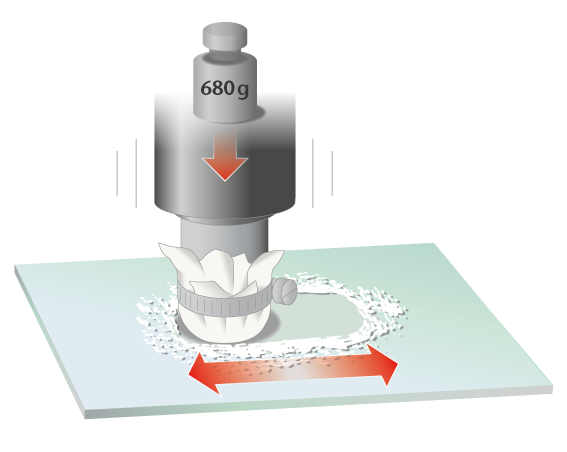

- The Cheesecloth Test is a good indicator of the resistance of the coating. It’s based on DIN ISO 9211-4 and simulates moderate abrasion. In this test, a cushion of gauze is pressed onto a coated surface with a certain force and then moved several times. The surface is then checked for damage. Competing products are 95% worse than SCHOTT products in this test.
Chemical tests
- Standardized CASS (Copper-accelerated Acid Salt Spray) test
- NSS (Neutral Salt Spray) test, which examines the anti-corrosive coating
