Technical Details of CompRite™ Compressor Terminals
Compressor terminals serve as feedthroughs for the wiring that supplies power to compressors. CompRite™ compressor terminals are manufactured using compression glass-to-metal sealing, delivering hermetic electrical insulation with high mechanical strength. CompRite™ compressor terminals provide high performance and excellent durability over long periods, even in harsh operating conditions such as extreme temperature, pressure, humidity, and vibration.
Features of SCHOTT compressor terminals

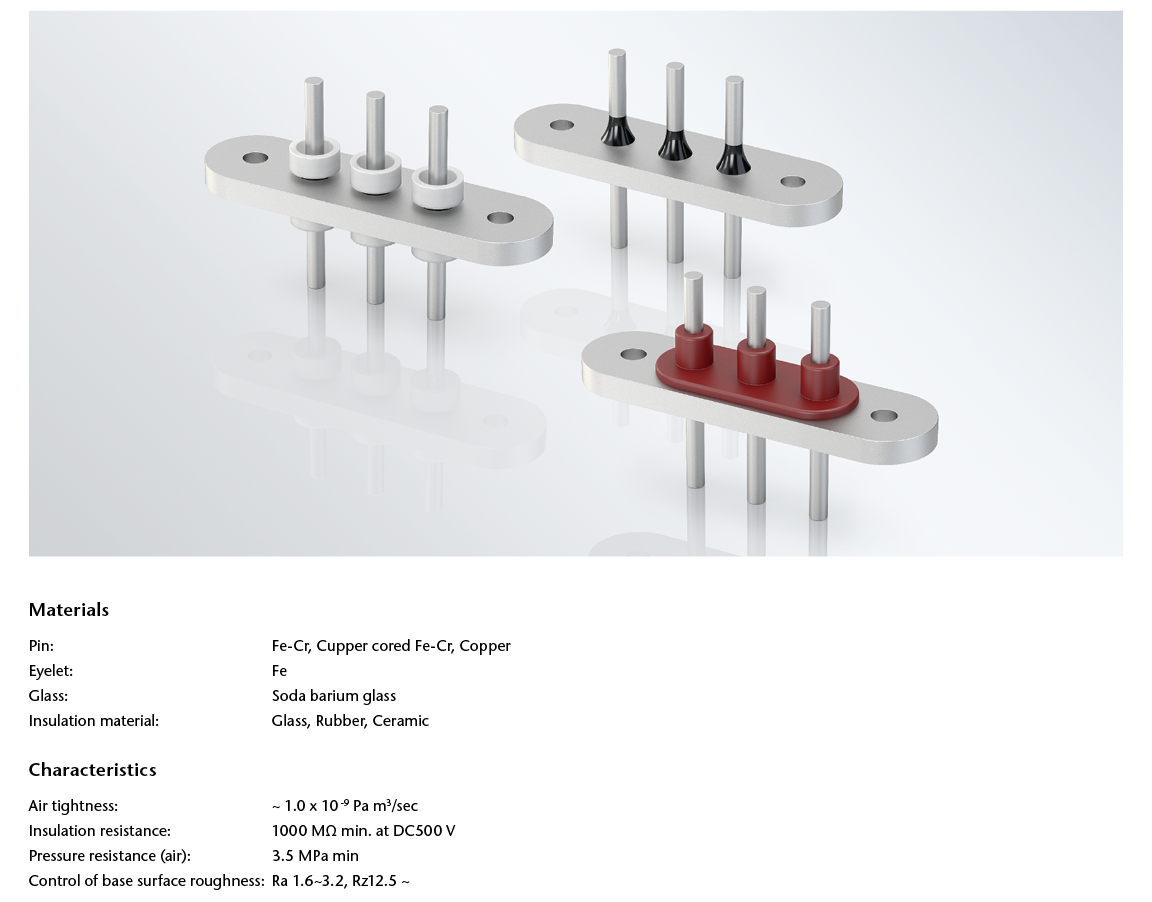

Automotive AC e-Compressor Terminals
Materials
| Pin: | Fe-Cr, Cr-Cu, Cu cored Fe-Cr |
| Eyelet: | Fe |
| Glass: | Soda barium glass |
| Insulation material: | Glass, Rubber, Ceramic |
Characteristics
| Air tightness: | ~ 1.0 × 10⁻9 Pa m³/sec |
| Insulation resistance: | 1000 MΩ min. at DC500 V |
| Pressure resistance (air): | 4.0 MPa min |
| Control of base surface roughness: | Ra 1.6~3.2, Rz12.5~ |
| Voltage | Electric Current | Pin Material | Pin Diameter (mm) | Insulation Material (Rubber) | Insulation Material (Ceramic) |
|---|---|---|---|---|---|
| 24 V - 48 V | 80 A - 150 A | Cr-Cu | 4.0 - 6.0 | Optional | Optional |
| 200 V - 500 V | Up to 30 A | Fe-Cr | 3.2 | Optional | Optional |
| 200 V - 500 V | 30 A - 50 A | Cu cored Fe-Cr | 3.2 | Optional | Optional |
| 800 V | Up to 30 A | Fe-Cr | 3.2 | Yes | Yes |
| 800 V | 30 A - 50 A | Cu cored Fe-Cr | 3.2 | Yes | Yes |
Compressor Terminals for Refrigeration & Air Conditioning
CO2 Compressor Terminals
