TO 56 Package
Most proven high-speed TO PLUS® headers for up to 56G applications.
About
SCHOTT TO PLUS® headers on TO 56 footprint are suitable to be used in GPON, XG-PON, 10GEPON, CPRI and 32G Fiber Channel, Single channel or Quad applications for use in SFP28 or QSFP28 (CWDM4) transceivers.SCHOTT recently introduced high speed 50G TO 56 header, which are suitable to be used in 50GbE, 100 GbE(PAM4), 200GbE(Quad), 400GbE(Quad). Single Channel or Quad for use in SFP56, QSFP56 (FR4), QSFP-DD and OSFP transceiver.
Product features
- AuSn Pad version is optional.
- Laser height can be customized.

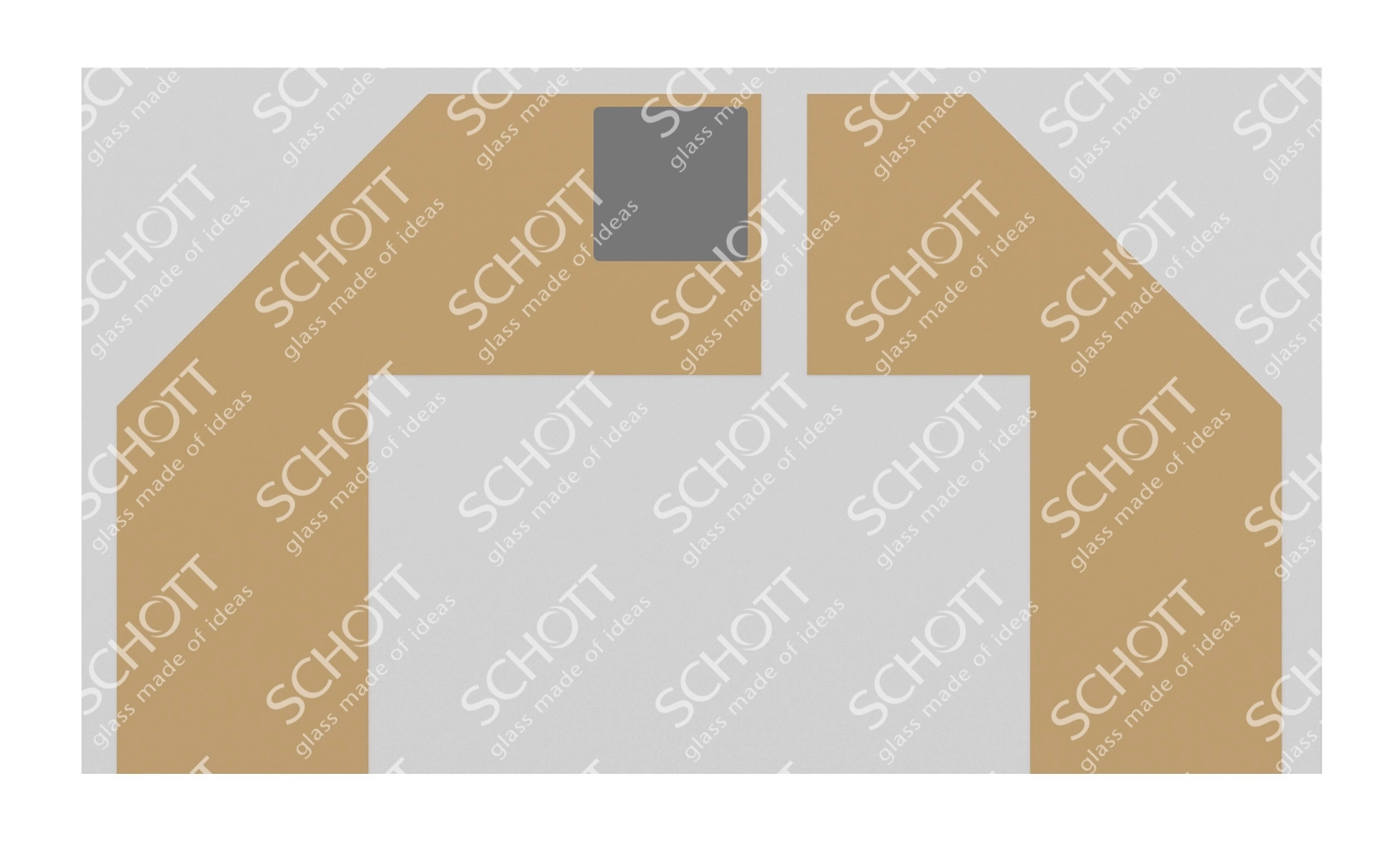

- Pre-attached submount with resistors optional.
| Modul | Speed | OSA Type | Fiber | TO Can Description | Function |
|---|---|---|---|---|---|
| SFF, SFP, SFP+ | 28 Gbps 56 Gbps |
Tx | SMF | TO-56 25ohm 3+1 submount |
High Speed |
| SFF, SFP, SFP+ | 28 Gbps 56 Gbps |
Tx | SMF | TO-56 25ohm 4+1 submount |
High speed, for isolated MPD anode and cathode pin out |
Product Images

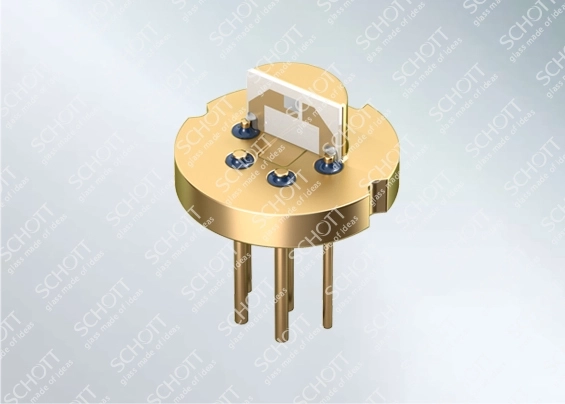

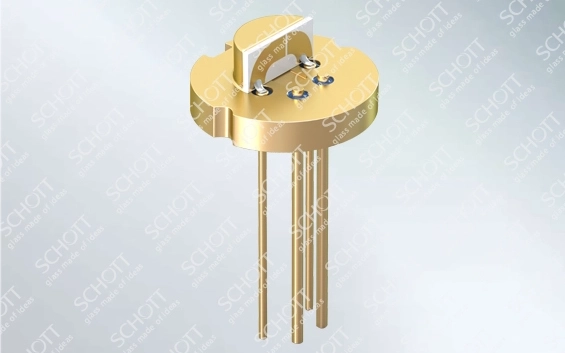

50G TO56

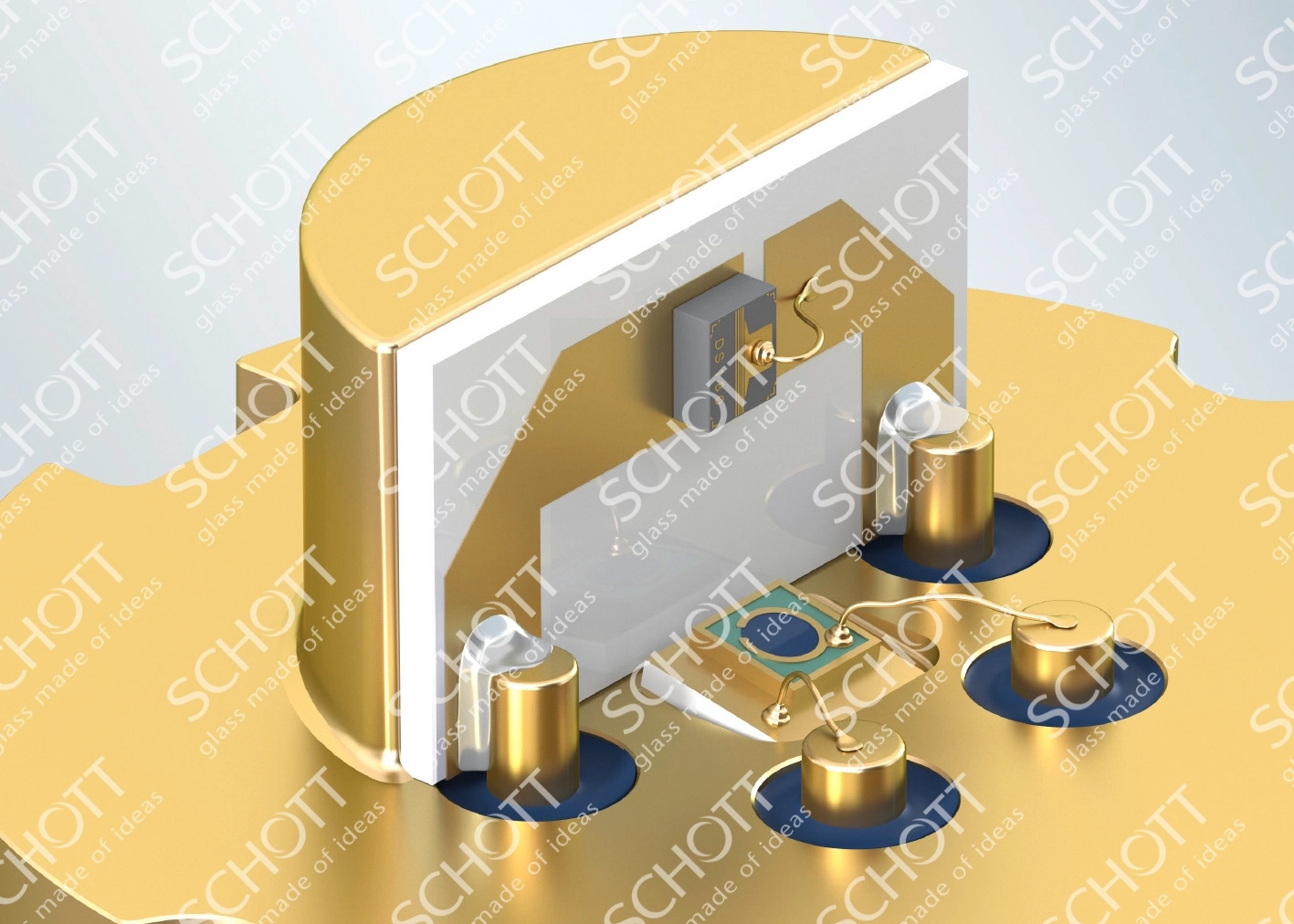

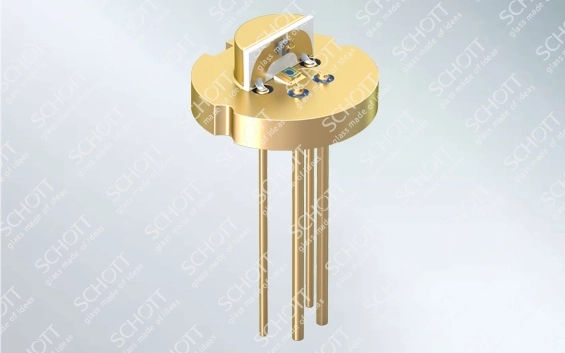

50G TO56 with components

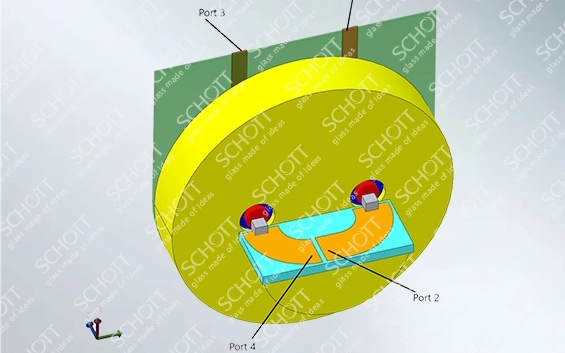

TO56 simulation result

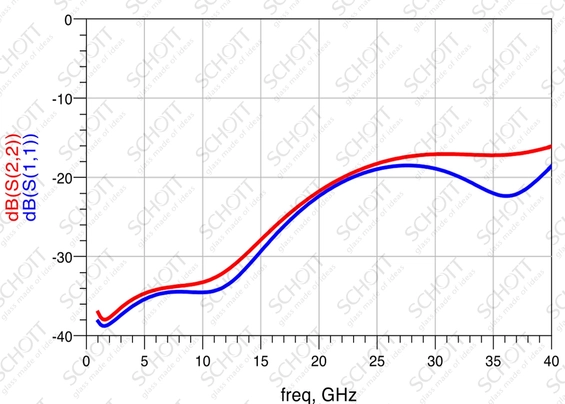

S11 (dB) – Reflection/Return Loss

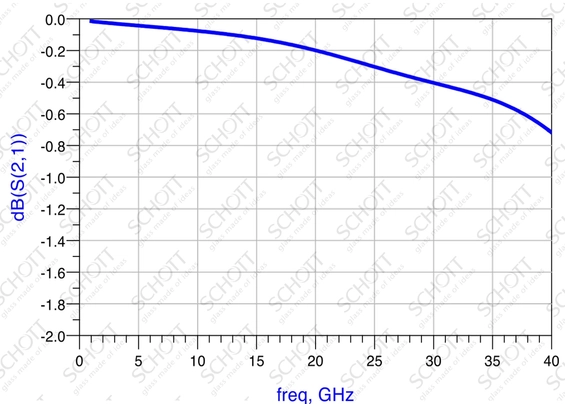

S11: Better than -15dB @40GHz for speeds of up to 25 Gbps
S21 (dB) – Insertion Loss
S21: 3dB bandwidth better than 40GHz
Simulation result of 50G TO56
*Simulation includes FPC

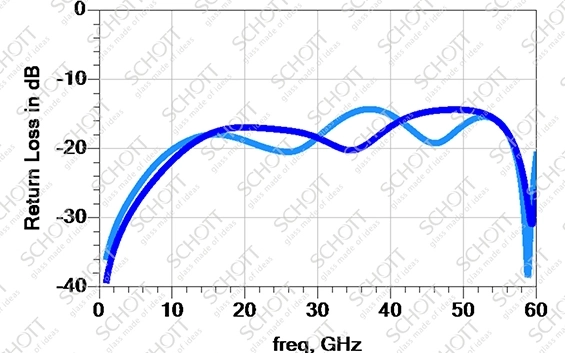

S11: Better than -10dB @60GHz

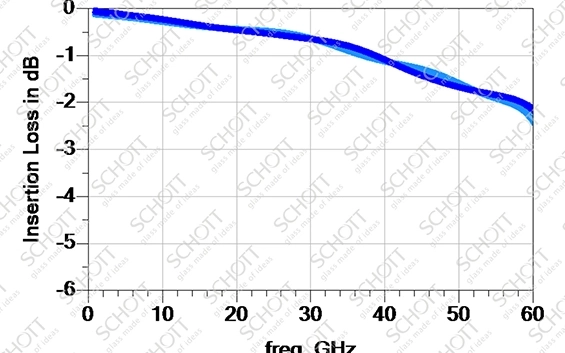

S21: 3dB bandwidth better than 60GHz
