Hermetic Packages for LiDAR Sensors

LiDAR sensors must deliver continuous high performance in challenging automotive environments. Sensitive optical LiDAR components need reliable packages for long-term protection against harmful elements. These packages must simultaneously offer precise optical interfaces and exceptional thermal dissipation properties to achieve stable laser wavelengths.

Advanced designs and processes for exceptional performance

Trusted hermetic packaging solutions

Hermetic packages have been used for decades in a broad range of high-performance, safety-critical applications. SCHOTT’s hermetic packaging technology, particularly our signature glass-to-metal sealing (GTMS), is the trusted choice of world-leading automotive and optical module manufacturers.

Excellent thermal management

SCHOTT hermetic packages have excellent thermal management thanks to special heat dissipation designs – ideal for high power, long wavelength lasers.

Superior optical performance

SCHOTT offers hermetic packages with advanced optical windows, lenses, and coatings. Our extremely precise design and manufacturing processes help enable high-performance optical signal transmission.

Competitive advantage with an experienced supplier

As an electronic packaging expert, SCHOTT takes a collaborative approach when working with customers on LiDAR packaging designs. This includes a special focus on optimization for competitive, high-volume manufacturing.

Vacuum Tightness
  • Our hermetic packaging technology allows the implementation of tailored and controlled internal pressure environments.
  • Hermeticity enables the required internal pressure to be maintained over an extremely long time period.
Reliability

Corrosion resistance

  • Humidity test: 85⁰C, 85% RH, 240 hours.
  • Salt spray test: 35⁰C, 0.5 - 3% salt concentration, 24 hours.



Thermal stability

  • Thermal cycle: -65 to 150⁰C, 15 cycles.
  • Thermal shock (air): 250⁰C for 1 minute.



Plating stability

  • Bake test: 425⁰C for 15 minutes (no plating discoloration or blistering).
  • Solderability of leads: wet homogenously with stains / bare spots <5%.
  • Mandrel test: leads to be coiled at 1mm diameter, 2-6 coils with no plating blistering or peeling.



Mechanical stability

  • Leads twisting and bending with load: 56g for pin diameter Ø0.25 ~ 0.29mm, 85g for pin diameter Ø0.3 ~ 0.5mm.
  • Tensile test: 10N for pin diameter 0.20-0.29mm, 23N for pin diameter 0.30-0.50mm.
Thermal Conductivity
  • Optimized thermal material (CuW, OFHC) choices available: copper thermal conductivity = 385 W/m-k.
  • TEC (thermoelectric cooler) designs and ceramic multilayer substrates are also available.
Optical
  • Windows, lenses and coatings available for improved optical transmission and reduced reflection.
  • High transmission glass in 905 - 1550nm range.

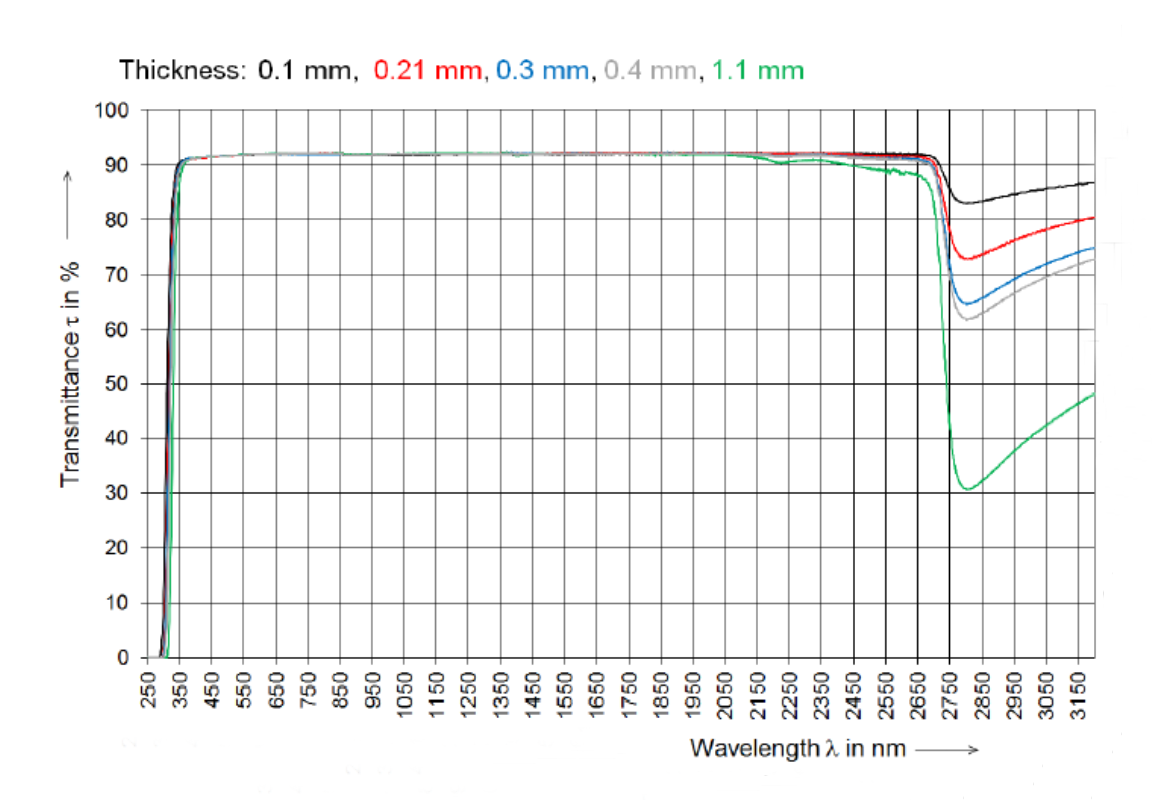

Transmittance chart for various thicknesses
  • Glass filters / coatings.
  • Angled window caps also available.



Optical Emission Direction

  • Vertical emission for VCSEL, as with TO packages.
  • Horizontal emission for edge-emitting laser diodes.
Mechanical

I/O Technology

  • THT: Through Hole Technology – High I/O count, suitable for environments with mechanical vibration / shock.
  • SMD: Surface Mount Technology – Low I/O count, high density, fast processing, and thin form factor.



Sealing methods

  • Projection welding – fast, economical, low heat dissipation to the chip.
  • Seam sealing – rectangular package, seal in array form.
  • Eutectic soldering such as AuSn – <350⁰C.
  • Laser welding – high precision.

Electrical

Insulation Resistance

  • Feedthrough insulation > 1x10^10 ohm at 50% RH, 100V.
