EasyLED Microscopy Illumination

All products in the SCHOTT EasyLED collection are designed using robust metal housing and bright, efficient LEDs with a lifetime of 50,000 hours. In addition, the range of EasyLED Accessories offers a variety of diffusers, polarization filters and mounting brackets for standard and customized systems.

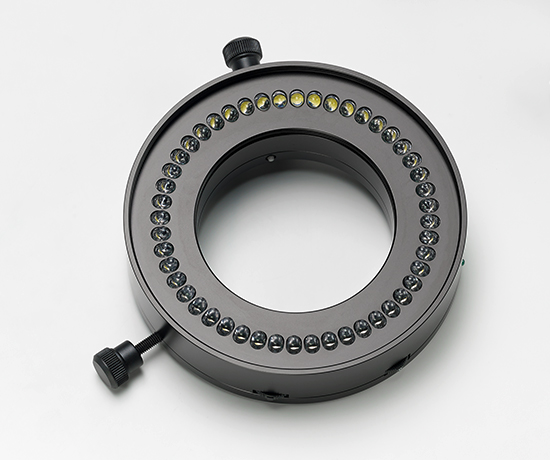

Ring Lights - EasyLED Series
Ring Lights - EasyLED Series

The EasyLED Ring Light delivers highly homogeneous and shadow-free illumination in a tough metal housing and well-designed heat sink. The EasyLED Ring Light Plus has the advantage of controllable segments to enable new contrasting methods, while the integrated ‘jog dial’ element provides simple and intuitive switching between illumination modes, as well as rotation of the segments in both directions.

CHARACTERISTICS

  • Powerful luminance (90/140 klux for EasyLED Ring Lights and Ring Lights Plus respectively).
  • Integrated controller.
  • Mountable direct to the microscope objective.
  • EasyLED Ring Light Plus is segmentable with eight segments.


YOUR ADVANTAGES

  • Various contrasting methods thanks to different segment modes.
  • Easy to use thanks to integrated operational elements.
  • Robust design for operation in demanding environments.

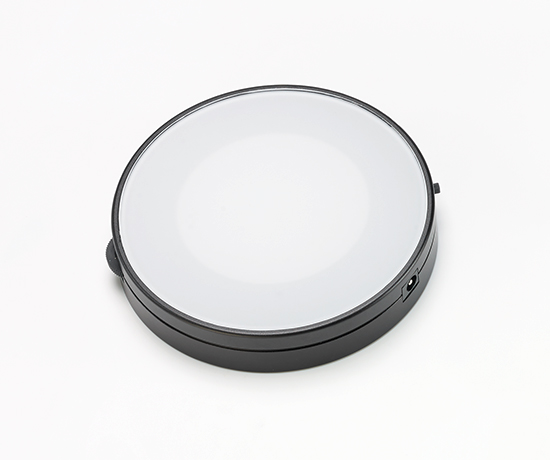

Back Lights - EasyLED Series
Back Lights - EasyLED Series

The EasyLED Back Light integrates high brightness LEDs with controller electronics into the head of the illuminator, offering easy and ergonomic operation. Made with a SCHOTT Opalika® glass surface, it’s ideal for transparent specimens.

CHARACTERISTICS

  • Powerful light density up to 12,000 cd/m2.
  • Continuous dimming from 0-100%.
  • Integrated controller.
  • Scratch-resistant surface.

YOUR ADVANTAGES

  • Made with SCHOTT Opalika® for perfect homogeneity.
  • Easy to use thanks to integrated operational elements.
  • Robust design for operation in demanding environments.

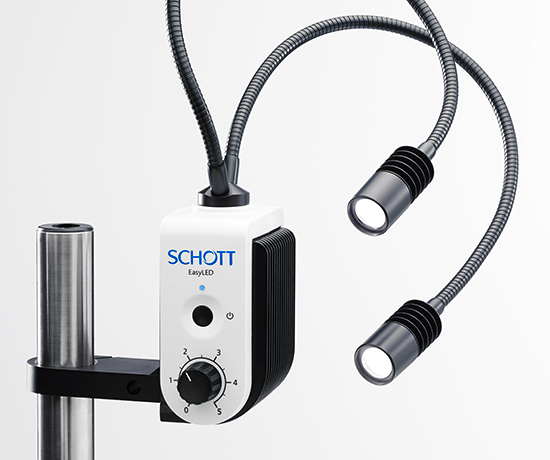

Spot Lights - EasyLED Series
Spot Lights - EasyLED Series

EasyLED Spot Lights are available in two different versions: an individual spot light with a single light head (Spot Light Plus Single), and a double spot light with two light heads (Spot Light Plus Double). In addition, the two light heads of the Spot Light Plus Double can be used individually.

CHARACTERISTICS

  • Powerful light flux of 130 lm for each spot.
  • Robust metal light head equipped with special cooling lamellae.
  • Integrated controller.
  • Mountable direct to the stand. Mounting brackets for all stands plus a standalone version are all available.


YOUR ADVANTAGES

  • Ergonomic design – the dimming control is ergonomically placed near the focus control of the microscope.
  • Robust design for operation in demanding environments.
  • Double Spot Light Plus is available with a switching feature for alternating lighting options.
Accessories - EasyLED Series Accessories - EasyLED Series Accessories - EasyLED Series Accessories - EasyLED Series Accessories - EasyLED Series
  • Accessories - EasyLED Series
  • Accessories - EasyLED Series
  • Accessories - EasyLED Series
  • Accessories - EasyLED Series
  • Accessories - EasyLED Series
Accessories - EasyLED Series

SCHOTT offers a variety of mechanical and optical accessories to increase the flexibility of the EasyLED series. Accessories include polarization filters, mounting brackets and color filters for EasyLED Spot Lights, as well as diffusers for EasyLED Ring Lights.

CHARACTERISTICS

  • Turnable polarization filter.
  • Halogen filter and color filters in red, blue, green and yellow available.
  • Diffuser with adapting thread (M110 x 1) to avoid LED reflection.
  • Mounting brackets for column Ø from 25-35 mm.
  • Borofloat® glass protection window for oily and dusty environments.



YOUR ADVANTAGES

  • Compatible with different OEM designs.
  • Polarization filters with perfect extinction ratio.
  • Color filters with high transmission unaffected by light-entrance angle.
  • Diffuser enables perfect contrast for highly reflective objects.
  • Mechanical accessories designed for easy handling.
