Pressure Sensors

Pressure sensors support and simplify our daily life – everywhere and every time. Used in cars, smartphones, medical devices, industry, and even in the air, measuring pressure enables safety, health and process control.

The small component with a huge responsibility

Almost two billion pressure sensors are currently produced every year. This impressive figure is due to the versatility of pressure sensors. Able to detect pressures of a few millibars all the way up to thousands, they perform vital roles in a vast range of industries. As well as the automotive and medical sectors, they can be found in consumer, industrial, avionic and other high-end applications.

Hand checking the pressure of a car tire


From TPMS systems for tires and monitoring powertrain functions to airbag and seatbelt activation, pressure sensors in the automotive industry perform a wide range of tasks that enable performance and safety.

Two male hospital patients with ventilators and female doctor


The field of medical science increasingly relies on pressure sensors to improve processes such as minimally invasive surgery (MIS), artery detection techniques, the development of robotic prosthetics, and improved biological analysis of patients.

Female hand operating a smart watch

Consumer products

Technology such as smartphones and smart watches are part of a market that demands ever-smaller, lighter and more sensitive pressure sensors. This market will develop further, with more functions needing new sensors while driving costs down.

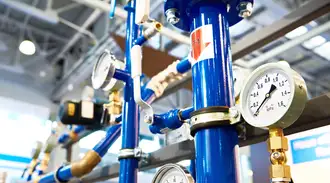

Pressure gauges in an industrial environment


Industrial sensors convert pressure into analogue or digital signals that accurately measure stock or control levels of industrial gas and liquids. These pressure sensors need to maintain outstanding performance in the harshest chemical and thermal environments.

An airplane in the sky above the clouds


Consistent performance of electronics in aviation depends on reliable pressure sensors. Over the lifetime of an aircraft, robust and reliable glass packaging will protect and optimize a sensor’s performance in intensely hostile conditions.

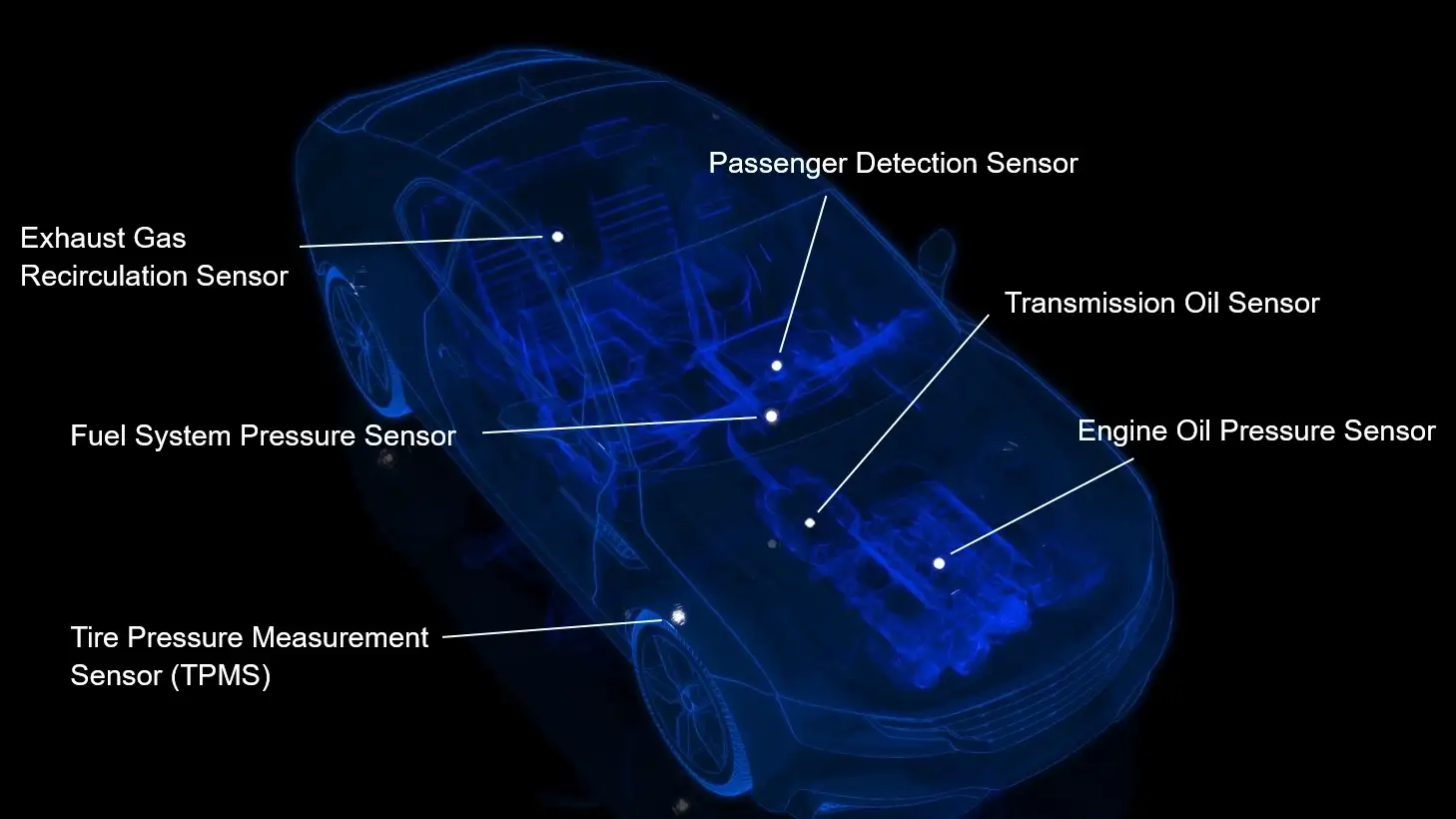

How pressure sensors drive the auto sector

Standard-setting glass products for pressure sensors

Whether processed as bare glass or structured, SCHOTT glass and glass wafers offer the ideal combination of high chemical resistance, low electrical and thermal conductivity, and outstanding structurability for highly accurate pressure sensors. The exceptionally flat and homogenous BOROFLOAT® 33 glass is perfect for the packaging of MEMS sensors thanks to its suitability for anodic bonding. If a very thin format (0.3mm or less) is required, MEMpax® can be used. SCHOTT FLEXINITY® structured glass substrates and wafers enhance functionality further with customized structures that increase effectiveness while reducing costs.

Video showing the range of applications of pressure sensors
SCHOTT-FLEXINITY®-Picture-Pressure Sensor MEMS-2021 04 20

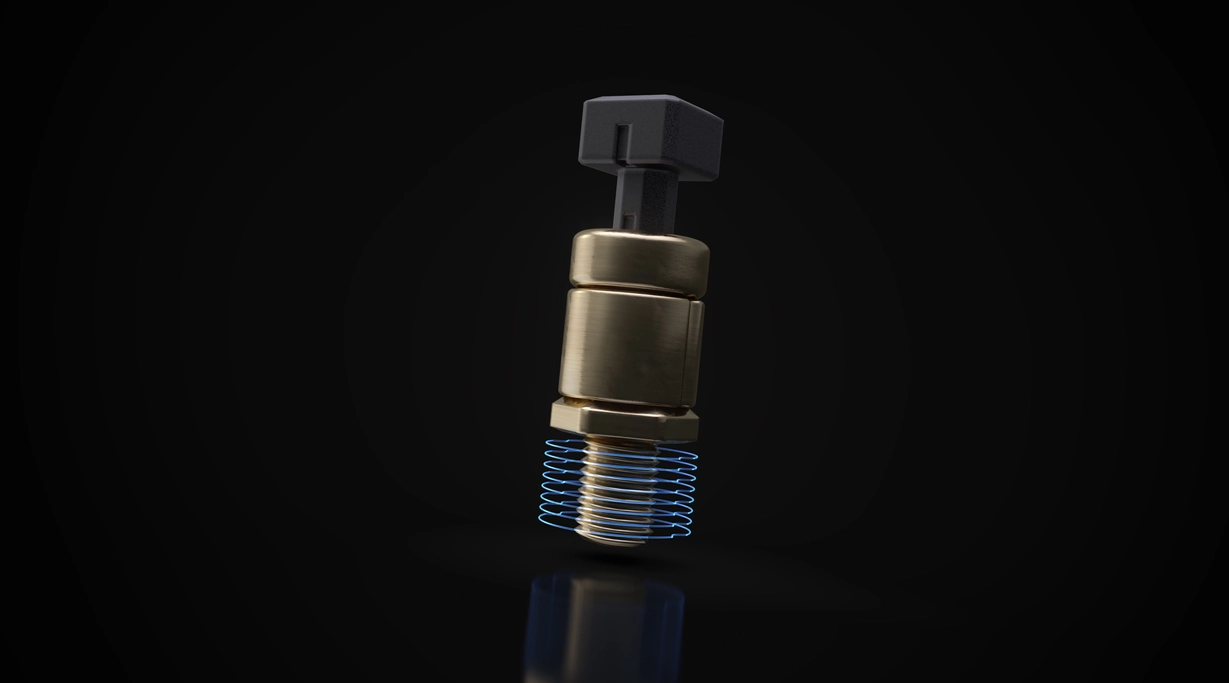

Video showing the manufacture of a MEMS die and how it's used in a pressure sensor

1. A huge market for a small component

Almost two billion pressure sensors are currently produced every year, a number that’s set to grow by roughly 7 % every year. The largest market for pressure sensors is in the automotive sector, which uses over half the units currently produced – around 10 for every new car. As well as performing a key role in Tire Pressure Monitoring Systems (TPMS), pressure sensors are also used to check the pressure of critical fluids such as engine and transmission oil. Add applications such as airbag activation and seat occupancy detection to check seatbelt usage, and you have one of the most important components for car safety.

2. How a pressure sensor works

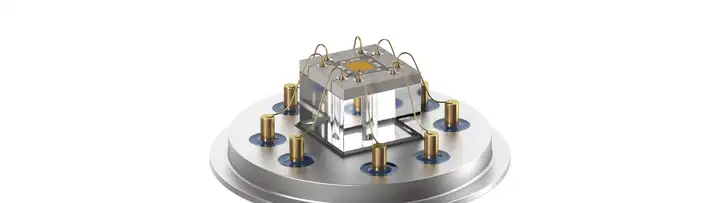

Pressure sensors are a highly interactive combination of complex electronics and robust packaging materials. At the heart of a pressure sensor is the bonded MEMS silicon die, an extremely sensitive structure that includes a small and very thin membrane that bends with applied pressure. This pressure is detected by piezoresistors on top of the membrane and converted, via resistance change, into an electric signal, which is calibrated and evaluated by an application specific integrated circuit (ASIC).

Key to the overall performance of the MEMS silicon die is the pedestal below the silicon, which provides a highly accurate through-hole to guide the pressure transmitting fluid or gas towards the membrane. Glass is the ideal material for these pedestals since it has low electrical and thermal conductivity, high chemical resistance, outstanding structurability, and a coefficient of thermal expansion (CTE) that matches silicon.

3. Principle of anodic bonding

Central to the accuracy, reliability and longevity of a high performance pressure sensor is the join between the borosilicate glass packaging component and the functional silicon unit. The bond is formed electrochemically at wafer level by an anodic bonding process at a temperature of about 400 °C and voltage up to 2,000 V, uniting the chemical components in the glass and silicon. This bond needs to be strong and stable, contributing to the high electrical, thermal and chemical resistance demanded from the die packaging solution.

Prof. Dr.-Ing. Roy Knechtel, Schmalkalden University of Applied Sciences in Germany
Prof. Dr.-Ing. Roy Knechtel, Schmalkalden University of Applied Sciences in Germany
Glass wafers provide more stability and precision for MEMS pressure sensors.

Prof. Dr.-Ing. Roy Knechtel explains the importance of effective packaging for MEMS-based pressure sensors and why glass is the ideal material.

The key markets of MEMS* based pressure sensors are automotive, medical, industry and consumer applications. Today’s and future requirements differ from application to application within these segments. In the automotive, medical and industrial sectors, product developers focus on improving precision, long-term stability and robustness – also taking harsh environments into account.
For high-volume consumer applications, increasing demand for miniaturization at low cost is the challenge.

(*Micro Electro Mechanical System)

The packaging of the mechanical stress-sensitive silicon MEMS dies is highly important as it co-determines the overall performance of the system. For the so-called first-level-packaging there are three main tasks:

  • providing stress decoupling and electronical isolation to the final module and system-level package,
  • enabling a hermetically sealed reference pressure and
  • providing additional protection e.g. to harsh media.
Glass is the first-level-package material of choice in many pressure sensor types due to its ideal, intrinsic portfolio of properties. Glass provides low electrical conductivity and can be hermetically bonded to silicon, with the optical transmittance of glass helping to monitor the bonding result and allowing optical applications. Supplementing its unique benefit combination, glass can be structured with high precision at affordable cost.

With the increasing need for improved pressure sensor system performance, glass packaging solutions are facing ongoing challenges. Smaller dies allowing higher number of dies per wafer. This require tighter tolerances in hole positioning and diameter of structured pressure sensor pedestal wafers. Best to realize in glass that is as thin as possible, to reduce the overall device thickness but keeping the stress isolation feature.

With ultra high-precision FLEXINTY® portfolio of structured glass, in combination with MEMpax®, a polish- & surface defect free ultra-thin “sister” material to the well-known BOROFLOAT® 33, a high-performance glass-based solution is now available to meet the future demands of the pressure sensor market.

SCHOTT and University of Schmalkalden will build up a comprehensive understanding of processing of glass material and its process integration - with MEMpax® glass structuring and anodic wafer bonding as one important example. Making use of reliable experimental data and simulations, established value chains such as in the automotive industry can be convinced to take chances of new options of glass materials and components. Generally, the results will provide a very good base for new applications of glass wafers in different MEMS technologies.
