TO 38 Package
High-speed TO PLUS® headers for Quad applications up to 100G
About
SCHOTT TO PLUS® headers on TO 38 footprint are suitable to be used in GPON, XG-PON, 10GEPON, CPRI and 32G Fiber Channel. Single Channel or Quad for use in SFP28 or QSFP28 (CWDM4 or PSM4) transceivers.Product features
- Laser height can be customized.
- Pre-attached submount with resistors optional.
- AuSn Pad version is optional.
Product variants
| Modul | Speed | OSA Type | Fiber | TO Can Description | Function |
|---|---|---|---|---|---|
| SFF, SFP, SFP+, QSFP28 | 28 Gbps |
Tx | SMF | TO-38, 25-Ohm, 3+1 submount |
High Speed, For shared MPD anode and cathode pin out |
Product images
Product performance

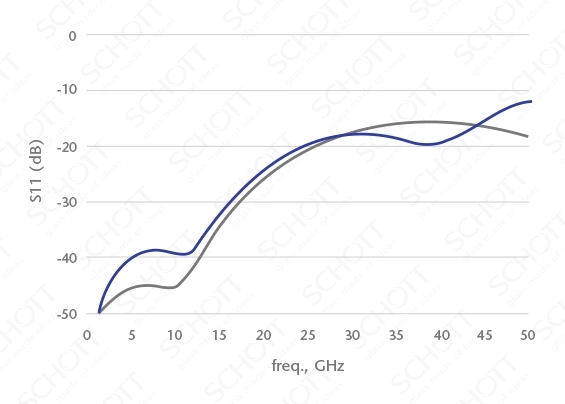

The simulation experiment results are as follows.S11 (dB) – Reflection/Return Loss
S11: Better than -15dB @40GHz for speeds of up to 25 Gbps.

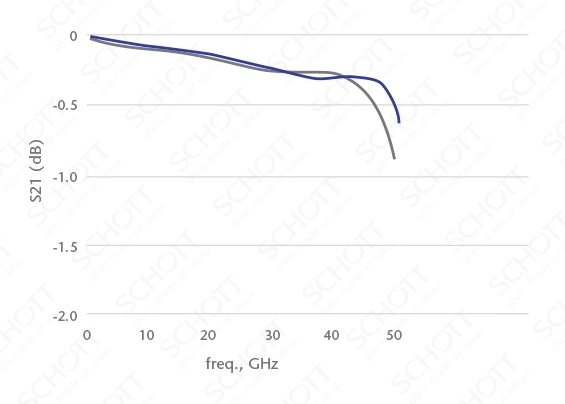

S21 (dB) – Insertion Loss
S21: 3dB bandwidth better than 40GHz.

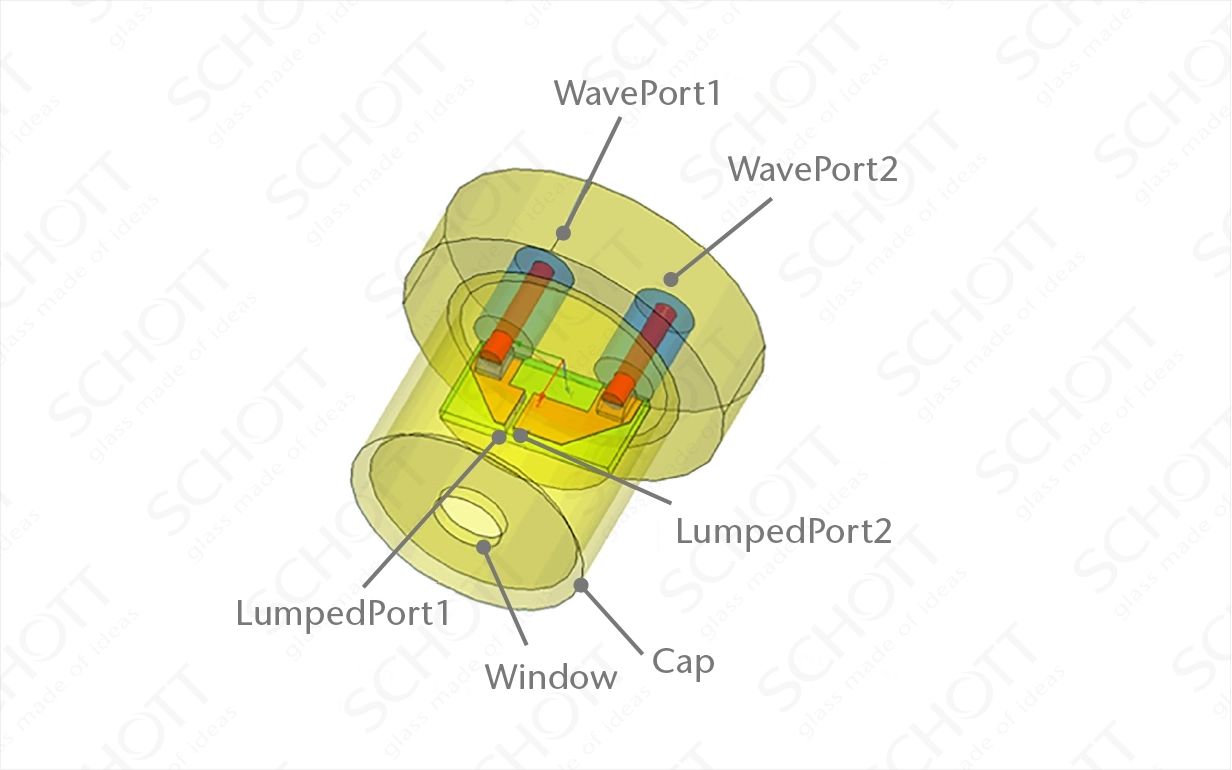

Product diagram for simulation test
