ROBAX®

The most striking features of ROBAX® panels are their transparency, near-zero thermal expansion and high temperature stability. An outstandingly reliable and long-lasting material for high-heat environments, ROBAX® offers supreme thermal, mechanical and chemical resistance, as well as high levels of safety.

Beauty, strength and high thermal resistance

Superior optical characteristics

The standard SCHOTT ROBAX® material is transparent and almost colorless. We also offer ROBAX® Magic materials which are tinted and come in a range of optical appearances, such as black, grey, blue-grey and white. In all cases you can rely on high-end quality.

Outstanding thermal resistance

ROBAX® has a near-zero thermal expansion, and is so robust that it experiences no breakage from thermal stress at extreme temperatures up to 760 °C. When the ROBAX® panel is hot it's also able to survive sudden thermal shock by cold water at 15 °C (59 °F).

Impressive mechanical strength

Sturdily constructed to our strict and demanding standards, the panels offer high mechanical strength. This does not stop us to continue the further optimization of the mechanical strength, which resulted in our latest innovation, the IDEAL Bending Edge for angular bent panels.

High-standard chemical characteristics

The outstanding hydrolytic, alkali and acid resistance of ROBAX fire-viewing panels meet the strict international testing standards ISO 719, 695, and DIN 12116, so you can be assured its material integrity is never compromised.

Installation tips
  1. Even under thermal load, ROBAX® glass-ceramic panels show near-zero thermal expansion. For this reason, the different thermal expansion of the various framing materials in relation to the ROBAX® fire-viewing panel must be taken into consideration for the design of the entire fireplace.
  2. Additionally, the possible manufacturing tolerances of the frame and the glass-ceramic panel have to be considered.
  3. Contact pressure which leads to bending stress on the panel must be eliminated. This can be achieved, for example, by limiting torque or with a limiter which limits screw-in depth.
  4. As a marginal torsion of the frame construction cannot be excluded it must be prevented that this torsion is transmitted onto the ROBAX® panel by using a thermally stable, permanently elastic sealing (such as fiberglass or mineral fiber fabrics).
  5. If – due to constructive reasons – the pressing of the fire-viewing panel in the frame is inevitable, then the contact pressure must be evenly distributed (never at single points) over the circumference of the panel.
  6. The panel must not come into direct contact with metal frame parts. Also here, it is recommended to use a thermally stable, permanently elastic seal.
  7. Additionally, the instructions of the seal manufacturers must be followed, particularly with regard to contact pressure of materials.
  8. During installation, it is essential to protect the glass-ceramic panel from potential damage (impacts, bumps and scratches), especially the edge areas.
  9. Generally, SCHOTT advises against gluing the fire-viewing panel. Nevertheless, if a high-temperature-resistant silicone is applied circumferentially on the panel, the elastic limit of the silicone must be considered. Due to the excellent bonding properties of glass to silicone, exceeding the elastic limit can lead to cracked or broken glass-ceramic panels. Punctual gluing with high temperature-resistant silicone is possible for sealing purposes.



Graph showing the near-zero thermal expansion of SCHOTT ROBAX® glass-ceramic compared to metal

Diagram of how a panel of SCHOTT ROBAX® glass-ceramic fits inside a frame

Illustration of a hammer hitting the side of a glass panel



Eco-friendly

ROBAX® fire-viewing panels contribute to the protection of the environment. They consist of 95% natural raw materials, all decoration colors are free of heavy metals, ROBAX® cullets can be recycled and its packaging is reusable and recyclable.  Also the final product fireplaces is eco-friendly. A closed fireplace with a fire-viewing panel is much more effecient than an open fireplace - and even more when installing ROBAX® with the heat-reflective coating IR Max - and wood as a renewable energy source burns CO₂ neutral. So ROBAX® contributes to the fulfillment of the European regulation Ecodesign 2022.





Natural power? - Yes, please logo

Optical characteristics

Transmission curves of transparent ROBAX® fire-viewing panels

 Graph showing the transmission curve of SCHOTT ROBAX® in 4 mm and 5 mm thickness

These are typical transmission curves for the material thicknesses mentioned that are based on individual measurements.

Thermal characteristics

Coefficient of mean linear thermal expansion

α ₍₂₀₋ ₇₀₀°C) (0 ± 0.5) x 10 ⁻ ⁶/K


Resistance to temperature differences (RTD)

The RTD value measures how well a material can resist temperature differences within a defined area. For example, the temperature difference between the hot area in the center of a panel and the cold edge or frame area (room temperature). No breakage caused by thermal stress occurs at a maximum temperature of Tmax 700 °C (1,292 °F).



Resistance to thermal shock (RTS)

The RTS value measures a hot panel’s ability to withstand a sudden thermal shock by cold water (15 °C/ 59 °F). No breakage caused by thermal stress occurs at a maximum temperature of Tmax 700 °C (1,292 °F).



Temperature/time loading

The temperature/time loading limits determine the permissible temperature for set usage times at which no breakage caused by thermal stress occurs. The temperature values refer to the hottest points on the outside of the panel.



One must make sure that these temperature/time loading limits are not exceeded. Taking resistance to thermal gradients and thermal shock into account, the following applies:

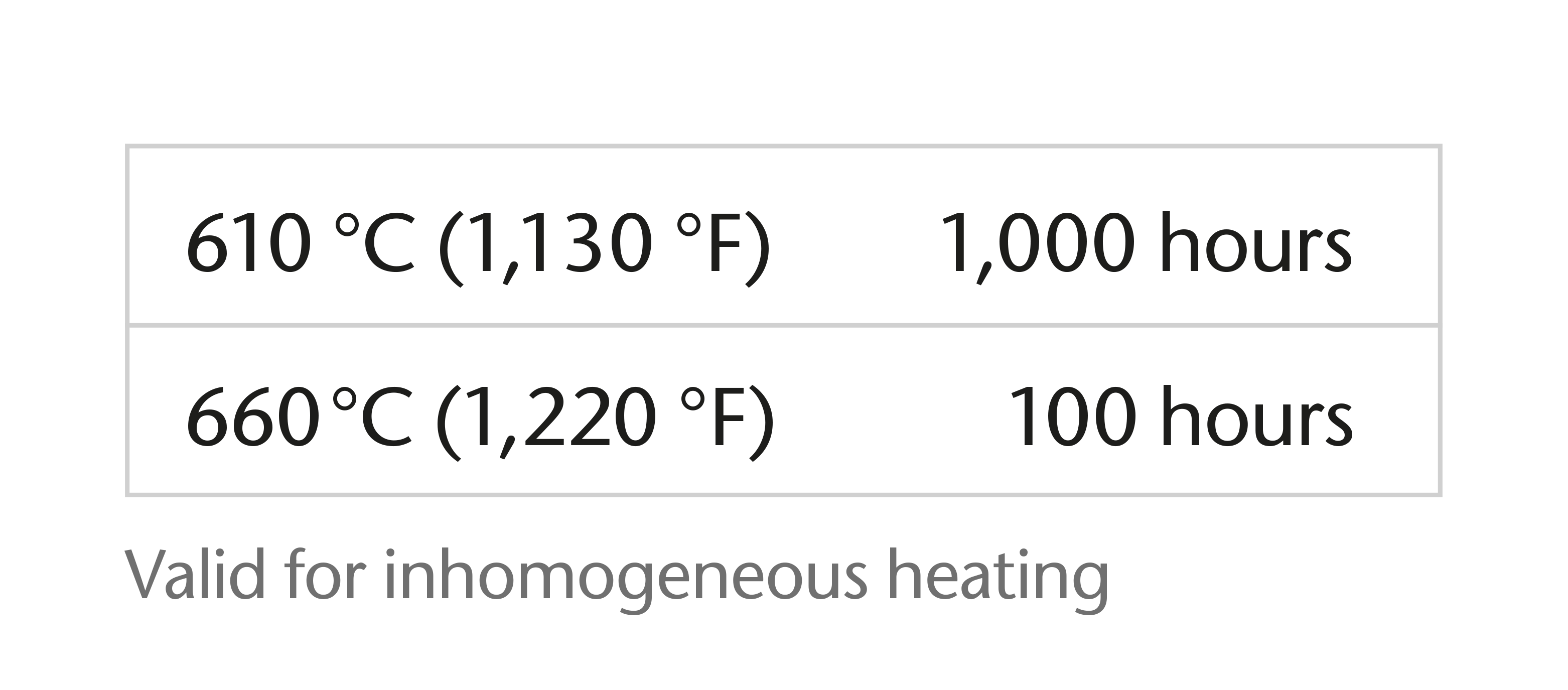

Chart showing the temperature/time load capacity of SCHOTT ROBAX®
Mechanical characteristics

Density

p approx. 2.6 g/cm3  (at 25°C/77°F)



Bending strength

σbB  approx. 35 MPa*

* The test is carried out in accordance with DIN EN 1288 part 5, with the surface in its normal condition of use as encouraged in practice.



Comments on mechanical properties

Values presented regarding the strength of glass and glass-ceramic must also take into account the special properties of these materials.

In the technical sense, glass and glass-ceramic are ‘ideally elastic’, yet brittle materials in which there are no flow patterns. When they come into contact with materials of the same hardness, this causes surface damage in the form of fine nicks and cracks. When glass and glass-ceramic are subjected to a mechanical load, the build-up of critical stress at the points of such nicks and cracks cannot be relieved by plastic flow, as is possible with materials like metals.

The consequence of this behavior is that the structurally based high strength of glass and glass-ceramic (≥ 10,000 N/mm²) is practically irrelevant. It is reduced by the effect of unavoidable surface defects (in the case of unprotected surfaces) to a practical value of approx. 20 to 200 N/mm² bending strength, depending on the surface state and test conditions.

The strength of glass and glass-ceramic is therefore not a material constant (as its density, for example), but is dependent on the following criteria:

  • Processing condition of the panel (incl. edge finish, boreholes, etc.)
  • Usage condition (type and distribution of surface defects)
  • Time-related conditions or alternatively the duration of the effective load
  • Surrounding conditions (corrosive substances, such as hydrofluoric acid)
  • The area subject to load, as well as the thickness of the panel
  • How the panel is installed

Its strength is also subject to a statistical distribution in accordance with the type and distribution of the surface defects.

Chemical characteristics

The chemical composition of ROBAX® complies with the requirements for a glass-ceramic in accordance with EN 1748 part 2. This special glass-ceramic material is produced using natural raw materials (95%).



Chemical resistance

In addition ROBAX® is tested for chemical resistance as follows:

  • Water resistance: Hydrolytic resistance to ISO 719 Grain Class HGB 1
  • Acid resistance: DIN 12116. Min. Class S2
  • Alkali resistance: In line with ISO 695. Min. Class A1

ROBAX® has a high degree of resistance to surface attacks. In individual cases, however, surfaces can experience changes under critical conditions, such as corrosive combustion gases (formation of acid at high temperatures). In such cases, please contact us.

Want to know more? Let's talk

Whether you need more information, samples, a quote, or advice for a project, I would be delighted to talk to you.

Get in touch
Birgit Eickeler, Product Manager for SCHOTT ROBAX® glass-ceramic panels for fireplaces
Birgit Eickeler

Product Manager SCHOTT ROBAX®
