Pump Laser Modules

TO method of production giving rise to economical benefits.

Registration Necessary

To see this content you have to register.

*Field is required

Společnost SCHOTT použije vaše údaje pouze k reakci na váš dotaz. Další informace o zpracování vašich osobních údajů.

About

Pump laser modules are suitable for use in 980nm or 1480nm pump lasers for long haul, CATV or Gas Sensors.

Product features

  • Ferrule or window option, brazed or welded.
  • Selective Plating technology to reduce gold and provide stability in the face of fluctuating gold prices.
  • Superior thermal performance with Copper baseplate and steel body combination.
  • Best way to bring the cost down.
  • Gold plated pins for wire bonding.
  • Heatsink with screw holes for mechanical attachment to PCB.
  • Ample Space for subassemblies in package.

Product images

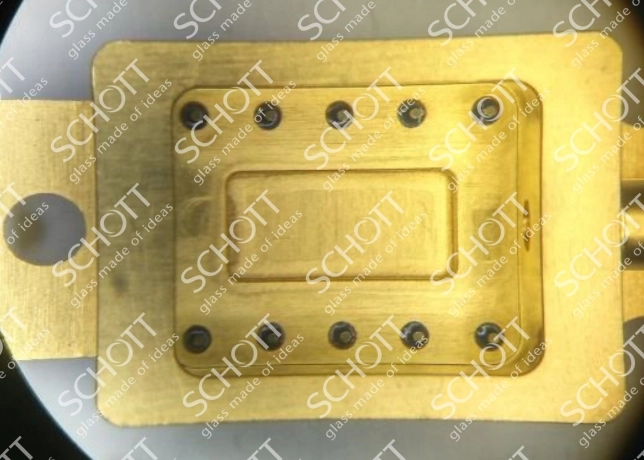

Pump laser module

Pump laser module

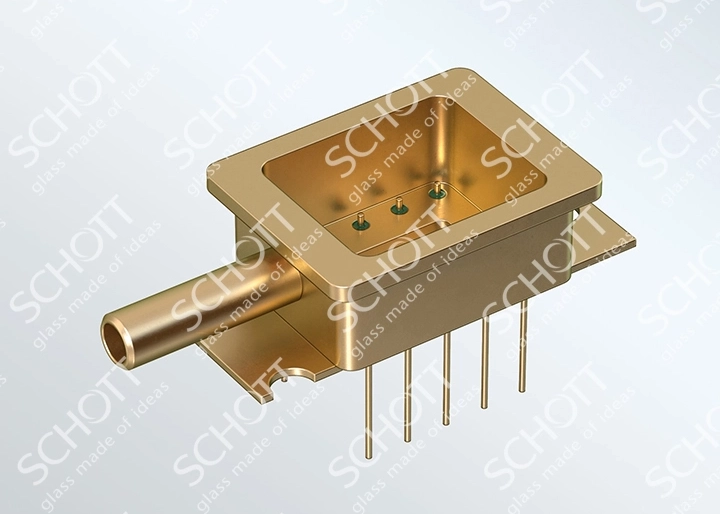

Butterfly package for pump laser

Butterfly package for pump laser

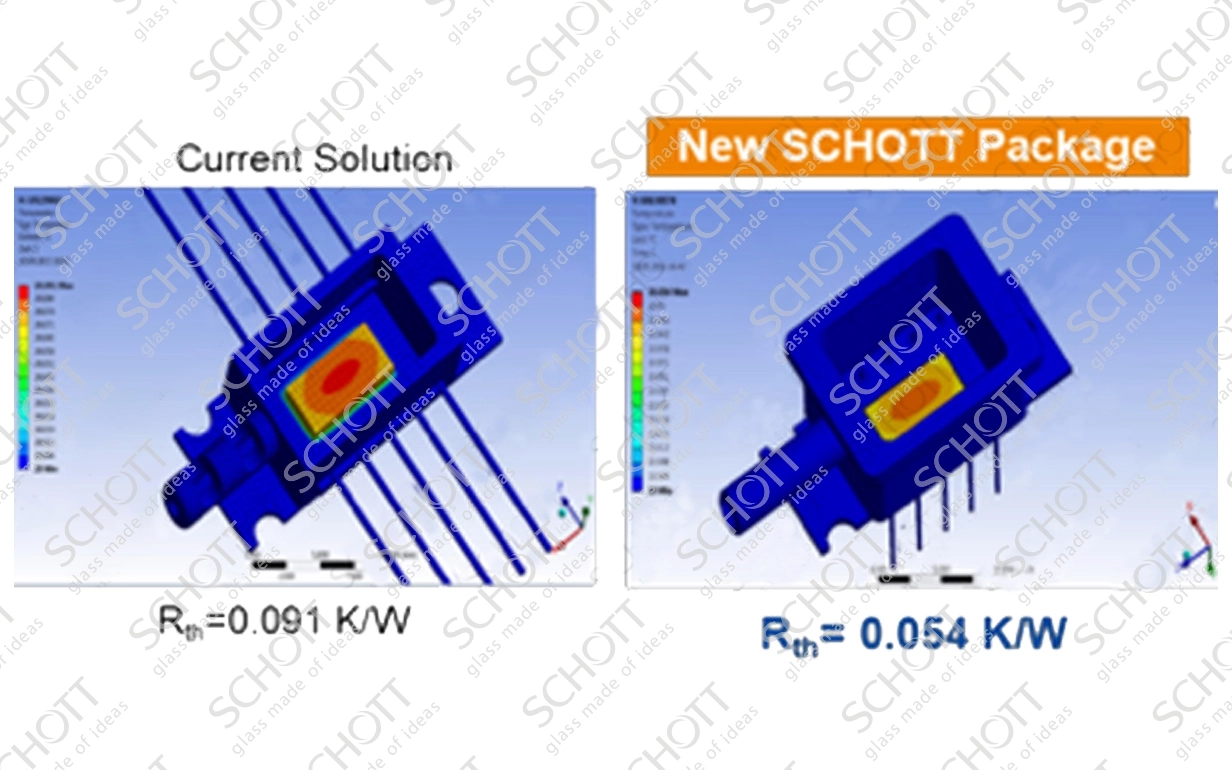

SCHOTT butterfly solution figure

Simulation Assumptions:

Heat Source: TEC (A=7.5x3.5mm, H=1mm)
Power of LD: 1W
Heat Sink: Size of package, T=constant 20°C
