DML TEC TO Package

High performance, miniaturized and economical alternative to box packages.

Registration Necessary

To see this content you have to register.

*Field is required

Společnost SCHOTT použije vaše údaje pouze k reakci na váš dotaz. Další informace o zpracování vašich osobních údajů.

About

The SCHOTT TEC TO package is a newly developed transistor outline (TO) which is ideal for laser diodes that require a thermoelectric cooler (TEC). The thermoelectric cooler allows for controlled heat dissipation, which leads to regulated and stable laser wavelengths and higher power signal transmission.

DML TEC TO for single-channel DWDM in 25G CPRI, XGPON OLT Tx and other tunable laser applications.

Product features

  • Designed for 25G DFB laser (on TEC).
  • Includes submount with 25ohm impedance G-S-G-S-G traces capable of 25 GBit/s.
  • Asymmetric design for mass producibility at affordable prices.
  • Potential application in XGPON.

Product images

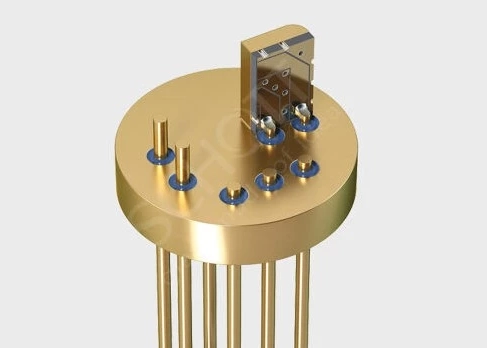

DML TEC TO

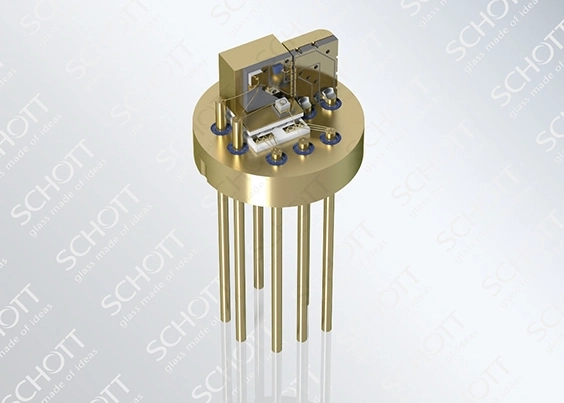

DML TEC TO with components

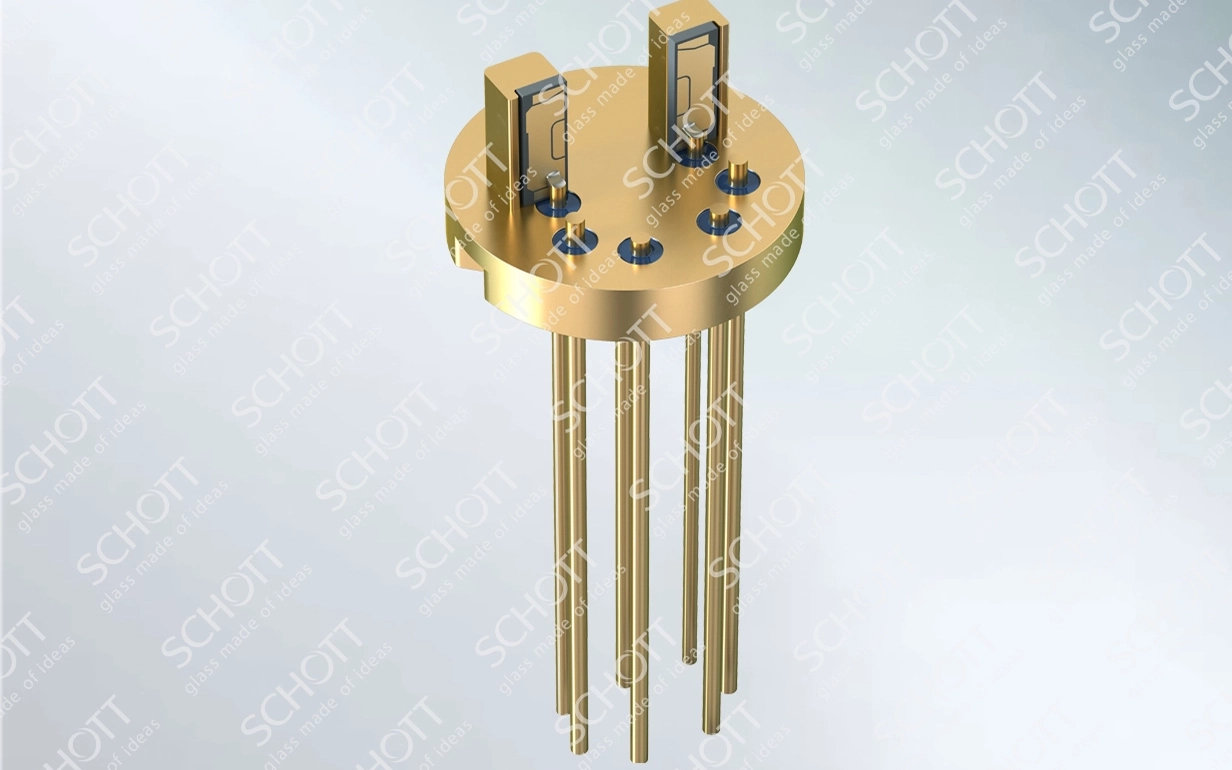

DML TEC TO - twin tower

Product performance

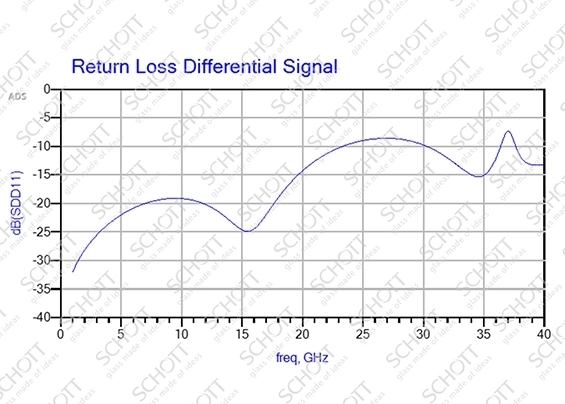

S11 (dB) – Reflection/Return Loss

S11 (dB) – Reflection/Return Loss

S11: Better than -15dB @25GHz for speeds of up to 25 Gbps.

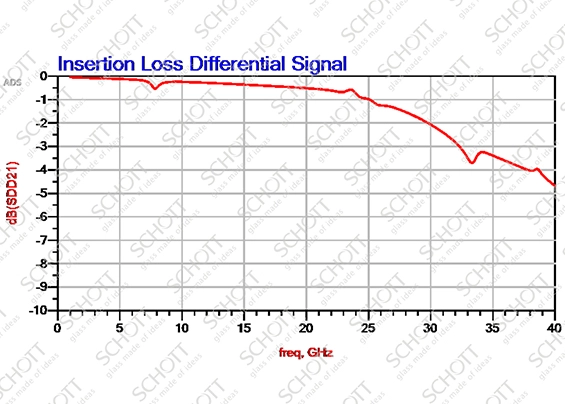

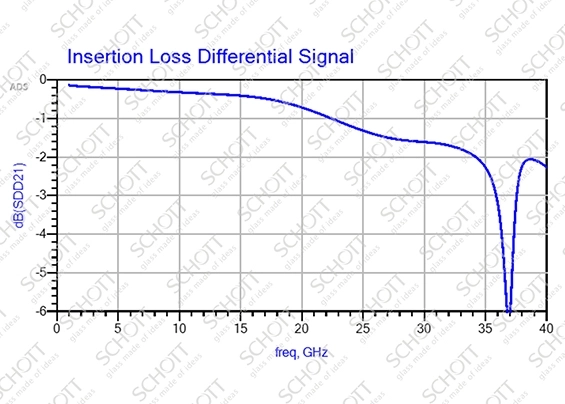

S21 (dB) – Insertion Loss

S21 (dB) – Insertion Loss

S21: 3dB bandwidth better than 30GHz.

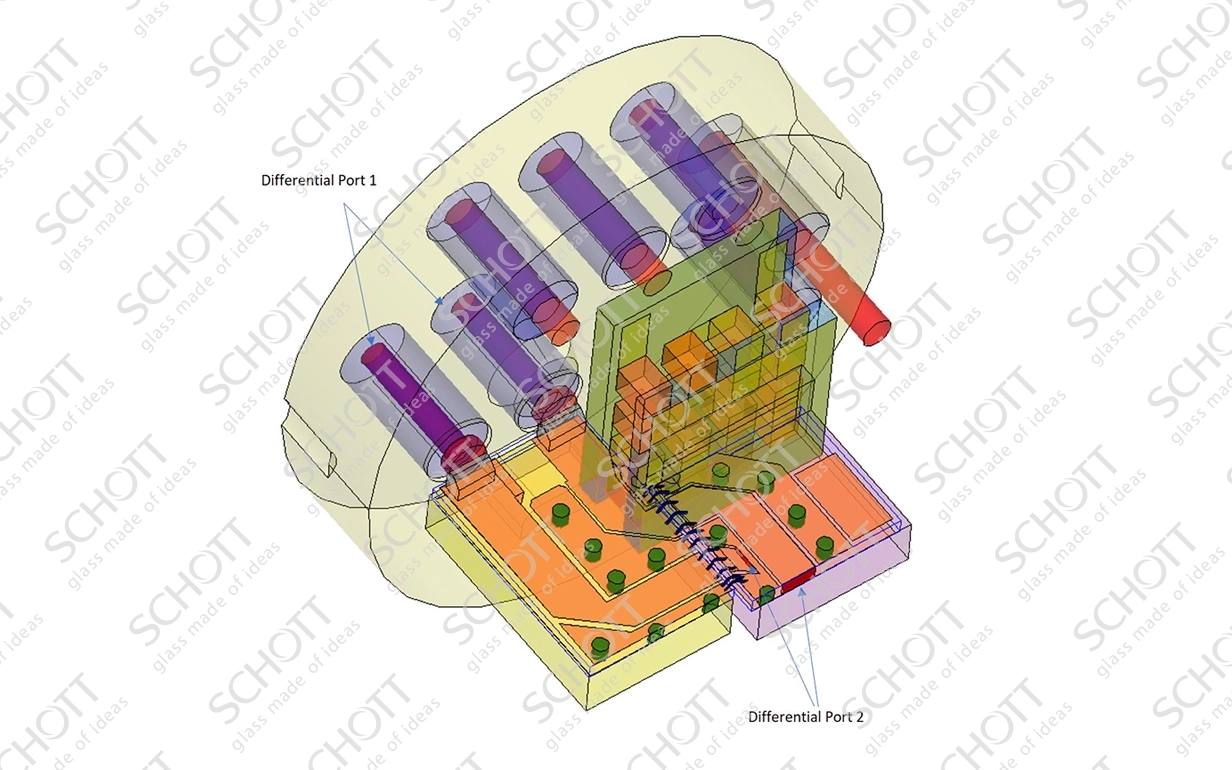

DML TEC TO-simulation graphic

DML TEC TO-simulation graphic

Twin Tower DML TEC TO

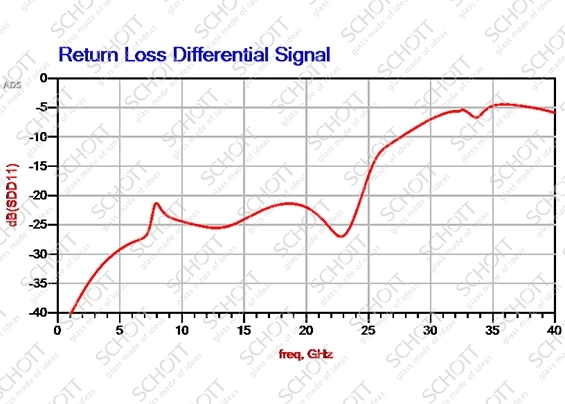

S11 (dB) – Reflection/Return Loss

S11 (dB) – Reflection/Return Loss

S11: Better than -15dB @20GHz for speeds of up to 25 Gbps.

S21 (dB) – Insertion Loss

S21 (dB) – Insertion Loss

S21: 3dB bandwidth better than 35GHz.

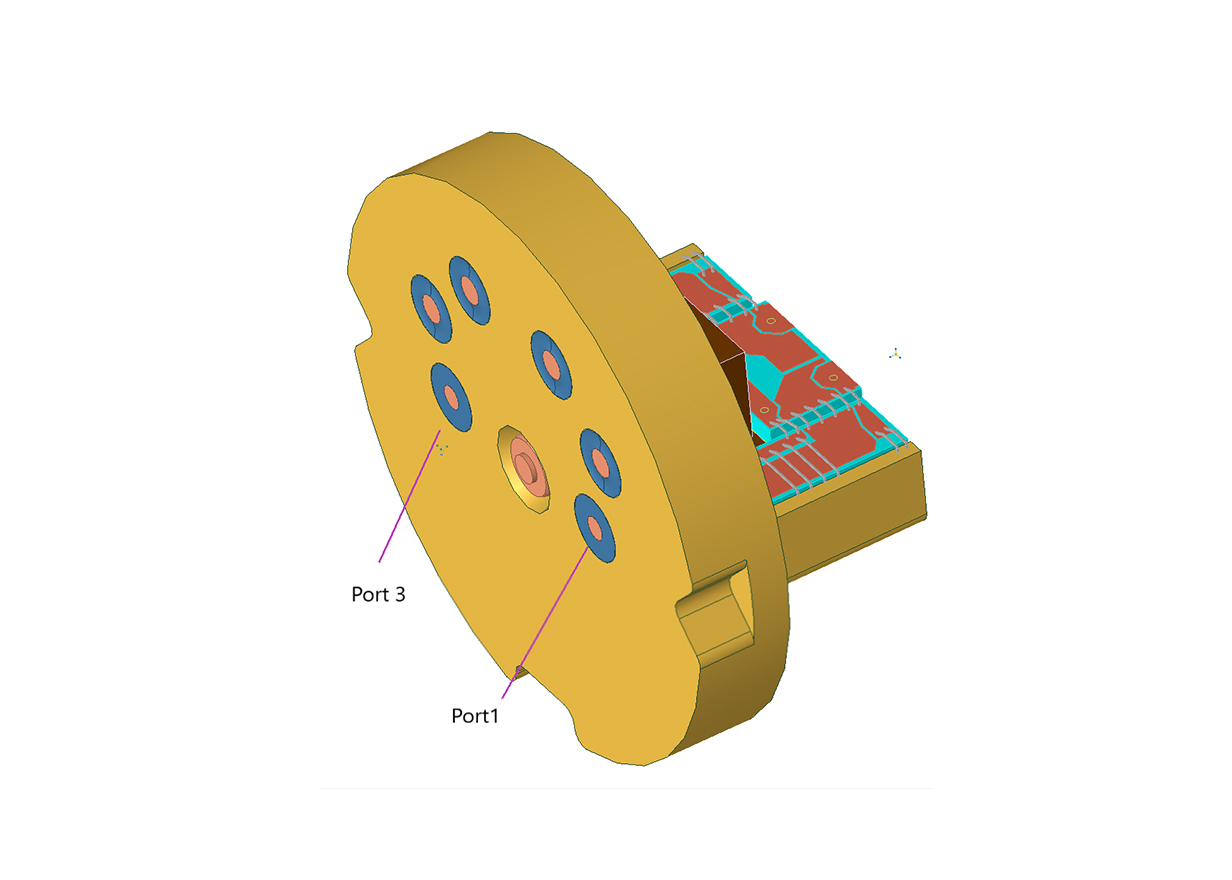

Twin Tower simulation graphic-Port 1 Port 3

Twin Tower simulation graphic-Port 1 Port 3

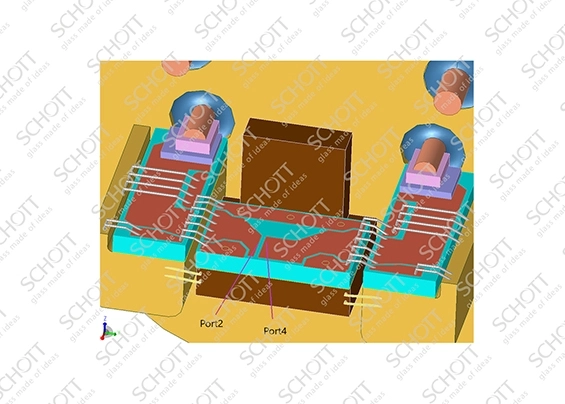

Twin Tower simulation graphic-Port 2 Port 4

Twin Tower simulation graphic-Port 2 Port 4
